3 Layers Pe Pipe Machine
China Comrise's reputation as an industry leader in 3 layers pe pipe machine manufacturing is well-earned. With its expertise, cutting-edge technology, global reach, reliable service, and innovation, the company is well-positioned to continue driving the industry forward. As the industry continues to evolve, China Comrise remains committed to staying ahead of the curve, challenging norms, and exceeding client expectations.
Send Inquiry
Product Description

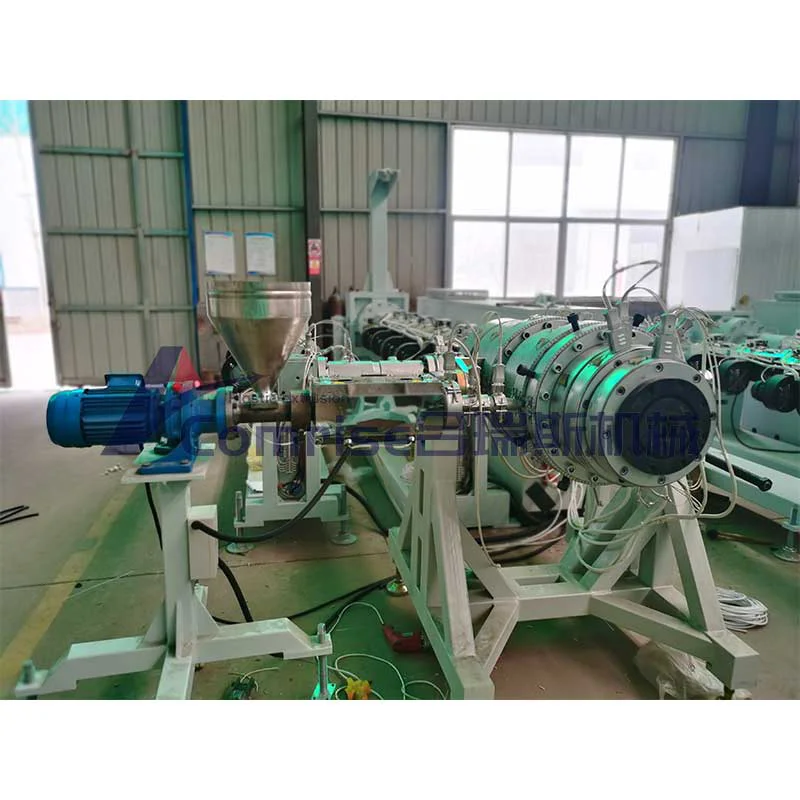

Comrise customized 3 layers pe pipe machine use three extruders, inner and outside layers can use original raw material, can with one or two colors, the middle layer use recycling material to save cost, we can make and customized single, two layers, or 3 layers pe pipe machine as per customer detail requirements.
Comrise also have different price and output for 3 layers pe pipe machines according to customer’s real situation, so customer can choose layers quantity or different outputs for the 3 layers pe pipe machine.
3 layers pe pipe machine made in China are used for producing high-density polyethylene (HDPE) or polyethylene (PE) pipes. These machines have extensive applications in the water supply and drainage systems，gas transportation, mining, agriculture, and telecommunications.
The weight per meter for HDPE hdpe pe ppr pipe extrusion machine line
|
HDPE water supply pipe machine weight per meter table |
||||||||||
|
OD |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|||||
|
|
PressureMpa |
|||||||||
|
|
0.6 |
0.8 |
1.0 |
1.25 |
1.6 |
|||||
|
|
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
|
φ20 |
|
|
1.2 |
0.068 |
1.5 |
0.084 |
1.8 |
0.099 |
2.3 |
0.123 |
|
φ25 |
|
|
1.4 |
0.100 |
1.8 |
0.126 |
2.2 |
0.151 |
2.3 |
0.157 |
|
φ32 |
1.2 |
0.111 |
1.5 |
0.138 |
1.9 |
0.172 |
2.4 |
0.214 |
3 |
0.262 |
|
φ40 |
1.4 |
0.163 |
1.9 |
0.218 |
2.3 |
0.262 |
2.9 |
0.324 |
3.7 |
0.405 |
|
φ50 |
1.8 |
0.262 |
2.3 |
0.331 |
2.9 |
0.412 |
3.7 |
0.517 |
4.6 |
0.630 |
|
φ63 |
2.2 |
0.403 |
3.0 |
0.543 |
3.7 |
0.662 |
4.7 |
0.826 |
5.8 |
1.001 |
|
φ75 |
2.6 |
0.558 |
3.5 |
0.755 |
4.5 |
0.957 |
5.6 |
1.172 |
6.8 |
1.299 |
|
φ90 |
3.2 |
0.838 |
4.3 |
1.111 |
5.4 |
1.378 |
6.7 |
1.683 |
8.2 |
2.023 |
|
φ110 |
4.2 |
1.340 |
5.3 |
1.574 |
6.6 |
2.058 |
8.1 |
2.489 |
10.0 |
3.016 |
|
φ125 |
4.8 |
1.740 |
6.0 |
2.153 |
7.4 |
2.625 |
9.2 |
3.213 |
11.4 |
3.906 |
|
φ140 |
5.4 |
2.192 |
6.7 |
2.694 |
8.3 |
3.297 |
10.3 |
4.029 |
12.7 |
4.876 |
|
φ160 |
6.2 |
2.876 |
7.7 |
3.537 |
9.5 |
4.312 |
11.8 |
5.274 |
14.6 |
6.402 |
|
φ180 |
6.9 |
3.602 |
8.6 |
4.446 |
10.7 |
5.453 |
13.3 |
6.687 |
16.4 |
8.098 |
|
φ200 |
7.7 |
4.466 |
9.6 |
5.513 |
11.9 |
6.751 |
14.7 |
8.216 |
18.2 |
9.979 |
|
φ225 |
8.7 |
5.644 |
10.8 |
6.977 |
13.4 |
8.651 |
16.6 |
10.433 |
20.5 |
12.643 |
|
φ250 |
9.6 |
6.960 |
11.9 |
8.545 |
14.8 |
10.498 |
18.4 |
12.852 |
22.7 |
15.561 |
|
φ280 |
10.7 |
8.690 |
13.4 |
10.774 |
16.6 |
13.187 |
20.6 |
16.116 |
25.4 |
19.503 |
|
φ315 |
12.1 |
11.054 |
15.0 |
13.572 |
18.7 |
16.711 |
23.2 |
20.417 |
28.6 |
24.703 |
|
φ355 |
13.6 |
14.003 |
16.9 |
17.233 |
21.1 |
21.248 |
26.1 |
25.889 |
32.2 |
31.348 |
|
φ400 |
15.3 |
17.751 |
19.1 |
21.941 |
23.7 |
26.897 |
29.4 |
32.860 |
36.3 |
39.817 |
|
φ450 |
17.2 |
22.451 |
21.5 |
27.834 |
26.7 |
34.086 |
33.1 |
41.618 |
40.9 |
50.463 |
|
φ500 |
19.1 |
27.702 |
23.9 |
34.317 |
29.7 |
42.126 |
36.8 |
51.408 |
45.4 |
62.245 |
|
φ560 |
21.4 |
34.761 |
26.7 |
42.944 |
33.2 |
52.747 |
41.2 |
64.464 |
50.8 |
78.013 |
|
φ630 |
24.1 |
44.039 |
30.0 |
54.286 |
37.4 |
66.842 |
46.3 |
81.506 |
57.2 |
98.818 |
|
φ710 |
27.2 |
56.012 |
33.9 |
69.124 |
42.1 |
84.803 |
52.2 |
103.557 |
64.5 |
125.741 |
|
φ800 |
30.6 |
71.005 |
38.1 |
87.547 |
47.4 |
107.587 |
58.8 |
121.441 |
72.6 |
159.466 |
PE water supply pipe standard-(GB/T 13663-2000)
This standard specifies the product specifications, technical requirements, test methods, inspection rules, marking, packaging, transportation, Storage. This standard also specifies basic performance requirements for raw materials, including a classification system.
This standard applies to water supply pipes made of PE63, PE 80 and PE 100 materials. The nominal pressure of the pipe is 0.32MPa~1.6MPa, and the nominal outer diameter is 16 mm~1000 mm.
The pipes specified in this standard are suitable for general-purpose pressure water transmission at temperatures not exceeding 40C, as well as for the transportation of drinking water.
Why is HDPE used for hdpe pe ppr pipe ?
High-density polyethylene (HDPE) pipes are effective for the large scale transfer of liquids given that they can withstand high amounts of pressure and are unaffected by rust due to their thermoplastic quality. Unlike traditional metal pipe fittings, HDPE pipes do not rust, corrode or rot.
Product application scenarios
