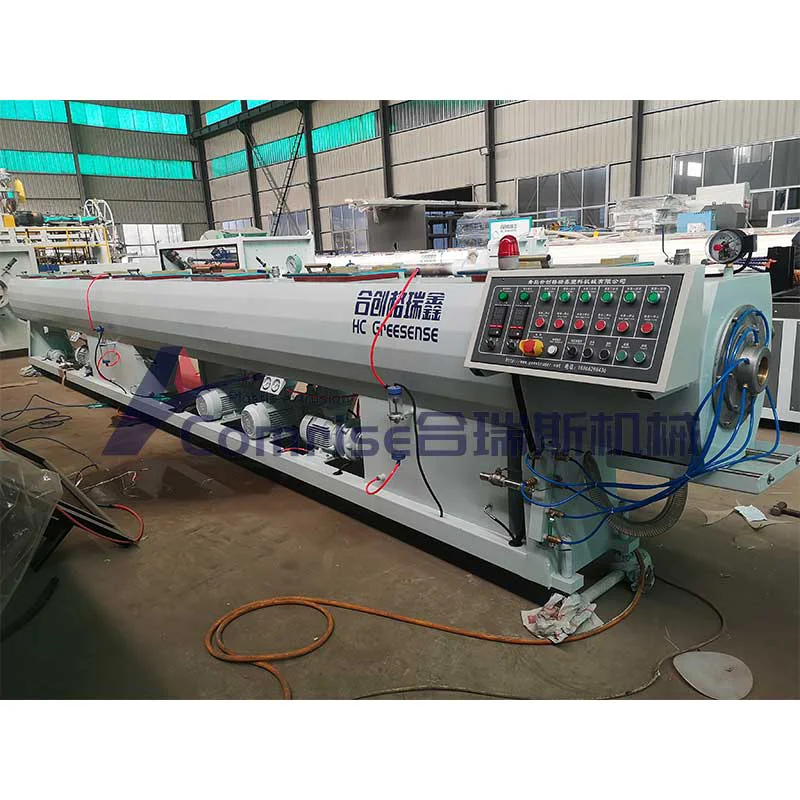

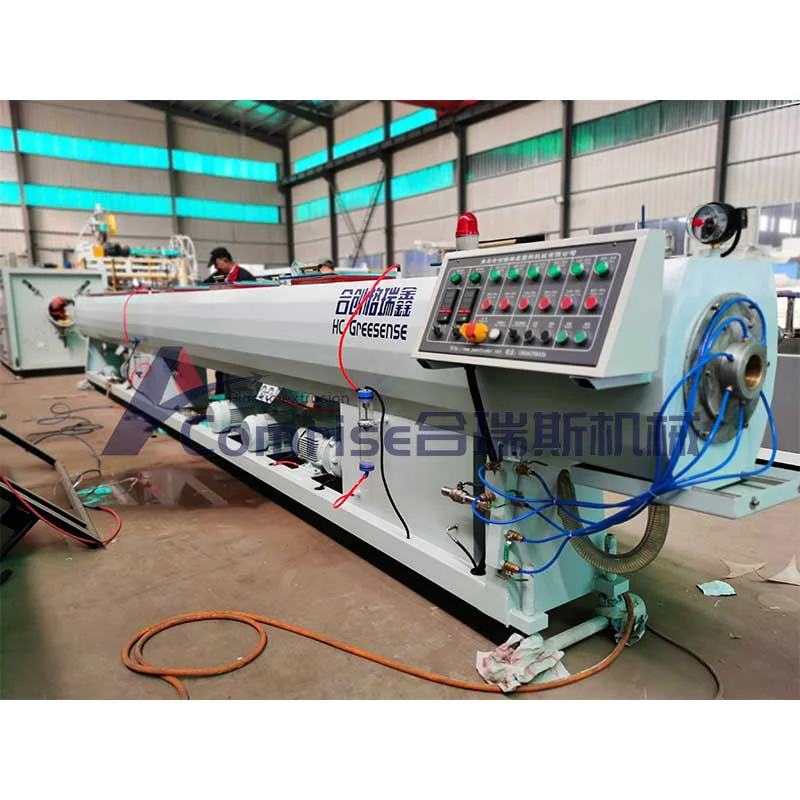

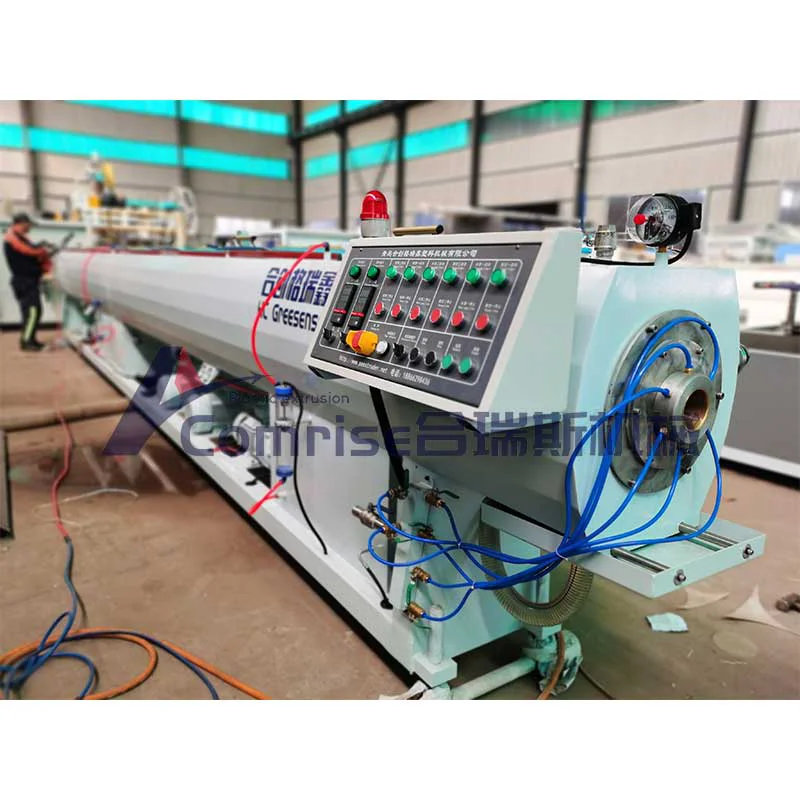

500mm Pe Pipe Extrusion Line
Qingdao comrise machinery is a factory supplier high quality 500mm pe pipe extrusion line. This line is versatile and can produce pipes and tubes of various sizes. This feature is particularly advantageous for our customers who need to produce pipes and tubes for different applications. Different sizes of pipes and tubes can be produced using our 500mm pe pipe extrusion line, from the small ones used for plumbing to larger pipes used in construction sites.
Send Inquiry
Product Description
Comrise high quality 500mm pe pipe extrusion line is an indispensable tool for any organization in need of producing pipes for fluid transportation. With its high precision, efficiency, and ease of use, this 500mm pe pipe extrusion line machine offers a cost-effective solution to organizations' needs. Its energy efficiency and versatility make it an excellent tool for all fluid transportation systems. Choose the 500mm pe pipe extrusion line for your organization today and experience the benefits of high-quality pipes and excellent performance.
Applications:
500mm pe pipe extrusion line machine is widely used in various industries to transport fluids such as gas, water, and sewage. Its applications include:
1. Water Supply: PE pipes are used in water supply systems due to their lightweight, ductility, and corrosion resistance.
2. Gas Distribution: The pipes produced through the 500mm pe pipe extrusion line are ideal for gas distribution systems because they are leak-free and can withstand high-pressure systems.
3. Sewage: PE pipes are perfect for sewage systems due to their ability to resist chemical attacks and wastewater.
The weight per meter for HDPE hdpe pe ppr pipe extrusion machine line
|
HDPE water supply pipe machine weight per meter table |
||||||||||
|
OD |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|||||
|
|
PressureMpa |
|||||||||
|
|
0.6 |
0.8 |
1.0 |
1.25 |
1.6 |
|||||
|
|
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
|
φ20 |
|
|
1.2 |
0.068 |
1.5 |
0.084 |
1.8 |
0.099 |
2.3 |
0.123 |
|
φ25 |
|
|
1.4 |
0.100 |
1.8 |
0.126 |
2.2 |
0.151 |
2.3 |
0.157 |
|
φ32 |
1.2 |
0.111 |
1.5 |
0.138 |
1.9 |
0.172 |
2.4 |
0.214 |
3 |
0.262 |
|
φ40 |
1.4 |
0.163 |
1.9 |
0.218 |
2.3 |
0.262 |
2.9 |
0.324 |
3.7 |
0.405 |
|
φ50 |
1.8 |
0.262 |
2.3 |
0.331 |
2.9 |
0.412 |
3.7 |
0.517 |
4.6 |
0.630 |
|
φ63 |
2.2 |
0.403 |
3.0 |
0.543 |
3.7 |
0.662 |
4.7 |
0.826 |
5.8 |
1.001 |
|
φ75 |
2.6 |
0.558 |
3.5 |
0.755 |
4.5 |
0.957 |
5.6 |
1.172 |
6.8 |
1.299 |
|
φ90 |
3.2 |
0.838 |
4.3 |
1.111 |
5.4 |
1.378 |
6.7 |
1.683 |
8.2 |
2.023 |
|
φ110 |
4.2 |
1.340 |
5.3 |
1.574 |
6.6 |
2.058 |
8.1 |
2.489 |
10.0 |
3.016 |
|
φ125 |
4.8 |
1.740 |
6.0 |
2.153 |
7.4 |
2.625 |
9.2 |
3.213 |
11.4 |
3.906 |
|
φ140 |
5.4 |
2.192 |
6.7 |
2.694 |
8.3 |
3.297 |
10.3 |
4.029 |
12.7 |
4.876 |
|
φ160 |
6.2 |
2.876 |
7.7 |
3.537 |
9.5 |
4.312 |
11.8 |
5.274 |
14.6 |
6.402 |
|
φ180 |
6.9 |
3.602 |
8.6 |
4.446 |
10.7 |
5.453 |
13.3 |
6.687 |
16.4 |
8.098 |
|
φ200 |
7.7 |
4.466 |
9.6 |
5.513 |
11.9 |
6.751 |
14.7 |
8.216 |
18.2 |
9.979 |
|
φ225 |
8.7 |
5.644 |
10.8 |
6.977 |
13.4 |
8.651 |
16.6 |
10.433 |
20.5 |
12.643 |
|
φ250 |
9.6 |
6.960 |
11.9 |
8.545 |
14.8 |
10.498 |
18.4 |
12.852 |
22.7 |
15.561 |
|
φ280 |
10.7 |
8.690 |
13.4 |
10.774 |
16.6 |
13.187 |
20.6 |
16.116 |
25.4 |
19.503 |
|
φ315 |
12.1 |
11.054 |
15.0 |
13.572 |
18.7 |
16.711 |
23.2 |
20.417 |
28.6 |
24.703 |
|
φ355 |
13.6 |
14.003 |
16.9 |
17.233 |
21.1 |
21.248 |
26.1 |
25.889 |
32.2 |
31.348 |
|
φ400 |
15.3 |
17.751 |
19.1 |
21.941 |
23.7 |
26.897 |
29.4 |
32.860 |
36.3 |
39.817 |
|
φ450 |
17.2 |
22.451 |
21.5 |
27.834 |
26.7 |
34.086 |
33.1 |
41.618 |
40.9 |
50.463 |
|
φ500 |
19.1 |
27.702 |
23.9 |
34.317 |
29.7 |
42.126 |
36.8 |
51.408 |
45.4 |
62.245 |
|
φ560 |
21.4 |
34.761 |
26.7 |
42.944 |
33.2 |
52.747 |
41.2 |
64.464 |
50.8 |
78.013 |
|
φ630 |
24.1 |
44.039 |
30.0 |
54.286 |
37.4 |
66.842 |
46.3 |
81.506 |
57.2 |
98.818 |
|
φ710 |
27.2 |
56.012 |
33.9 |
69.124 |
42.1 |
84.803 |
52.2 |
103.557 |
64.5 |
125.741 |
|
φ800 |
30.6 |
71.005 |
38.1 |
87.547 |
47.4 |
107.587 |
58.8 |
121.441 |
72.6 |
159.466 |
PE water supply pipe standard-(GB/T 13663-2000)
This standard specifies the product specifications, technical requirements, test methods, inspection rules, marking, packaging, transportation, Storage. This standard also specifies basic performance requirements for raw materials, including a classification system.
This standard applies to water supply pipes made of PE63, PE 80 and PE 100 materials. The nominal pressure of the pipe is 0.32MPa~1.6MPa, and the nominal outer diameter is 16 mm~1000 mm.
The pipes specified in this standard are suitable for general-purpose pressure water transmission at temperatures not exceeding 40C, as well as for the transportation of drinking water.
Why is HDPE used for hdpe pe ppr pipe ?
High-density polyethylene (HDPE) pipes are effective for the large scale transfer of liquids given that they can withstand high amounts of pressure and are unaffected by rust due to their thermoplastic quality. Unlike traditional metal pipe fittings, HDPE pipes do not rust, corrode or rot.
