75-250mm Hdpe Pipe Machine

General Information

1. Product Specification :
2. Production line name: PE pipe production line
3. Model: Φ50-Φ160
4. Pipe specifications: Φ50. Φ63、Φ75、Φ90、Φ110、Φ125、Φ140、Φ160

GET A QUOTATION NOW

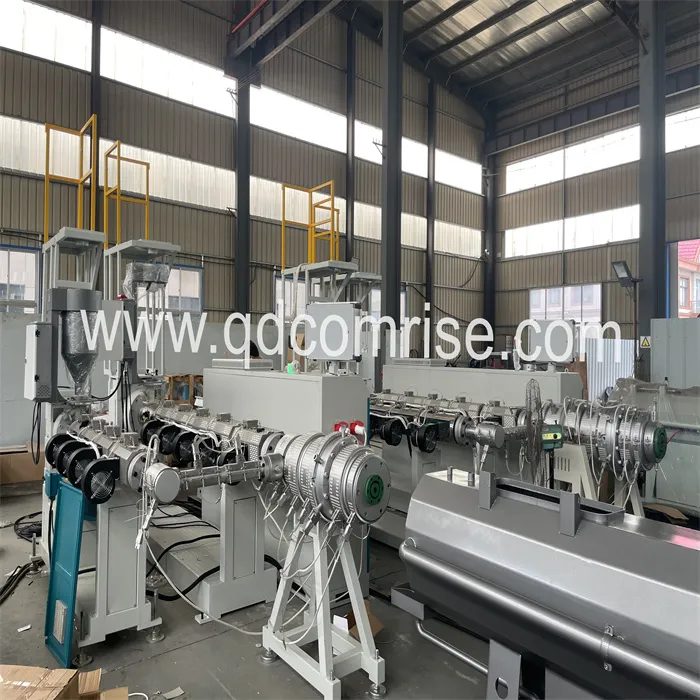

High efficiency 75-250mm Hdpe Pipe Machine---High efficiency single screw extruder

Due to the use of optimized screws and a new slotted sleeve design, the extruder has the following advantages: high plasticization rate, uniform melt, and continuous and stable production. A high-performance gearbox reducer with high torque, long lifespan, and low noise. The driving motor is an AC motor.

Comrise high speed 75-250mm Hdpe Pipe Machine---composite machine heads with replaceable core molds

(Mold core oil temperature control, vacuum suction super cooling is used for the inner wall of the pipe, and high-speed cooling of the inner water ring is used for the sizing sleeve)

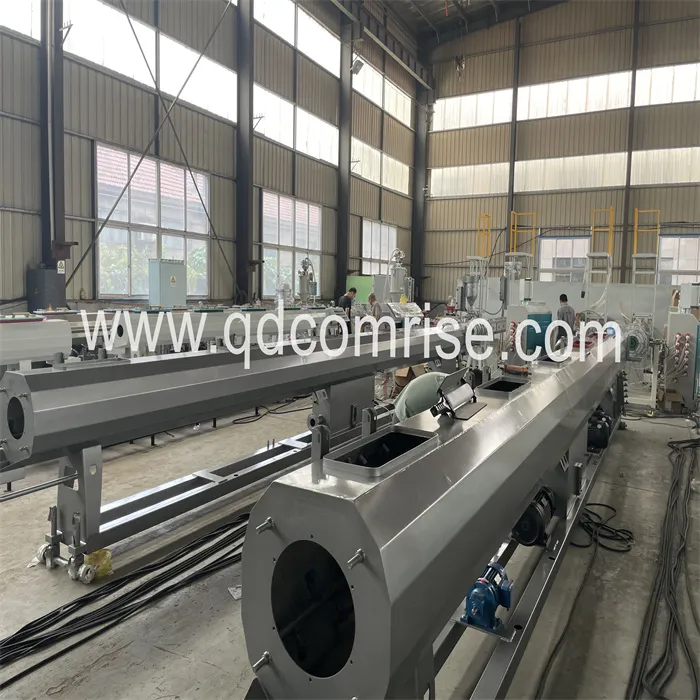

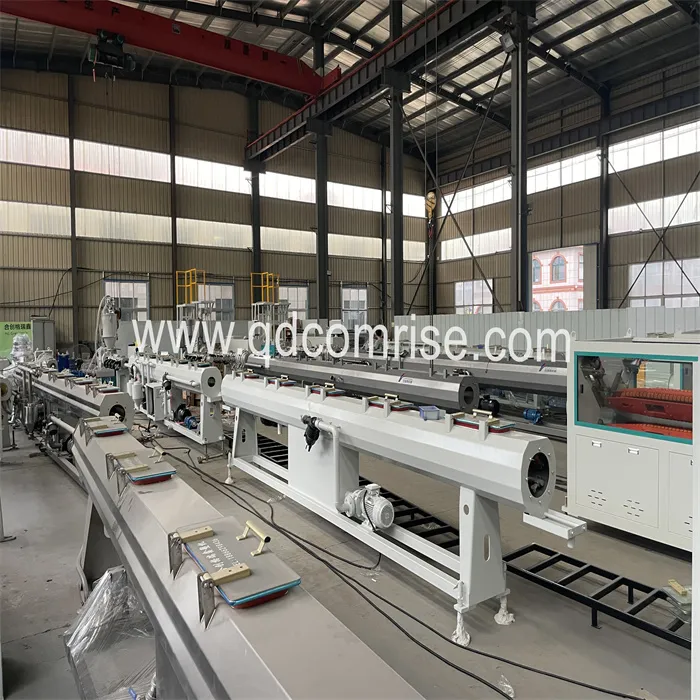

Comrise cheap price 75-250mm Hdpe Pipe Machine---vacuum sizing tank

The main function of the vacuum shaping table is to size and cool the pipes. A filter system and a bypass circulation path are installed on the water circulation path, and it also has automatic monitoring of water level and temperature. The sizing plate is installed on the vacuum shaping table.

Comrise easy maintainable 75-250mm Hdpe Pipe Machine---4 claws crawler tractor

The traction device is designed to continuously and stably pull pipes, with a compact structure, maintenance free structure, and absolute stability during operation, which are its outstanding features.

Comrise stable 75-250mm Hdpe Pipe Machine---no dust cutting machine

Adopting an adjustable length measuring device, including an incremental encoder and a measuring wheel, installed on the traction machine, so as to accurately measure the length and cut.

75-250mm Hdpe Pipe Machine---Meter weight control system (WALTHMAC)

The meter weight online measurement and control system adopts high-precision and high-speed weighing modules to continuously measure the consumption of extruded materials. The embedded control unit forms a closed-loop control system in real time by using production line related data, screw speed, and traction machine speed. After setting the meter weight/extrusion amount, the meter weight control system adjusts the screw speed and traction speed in real time according to the set value, thus achieving the real-time control of pipe wall thickness.
