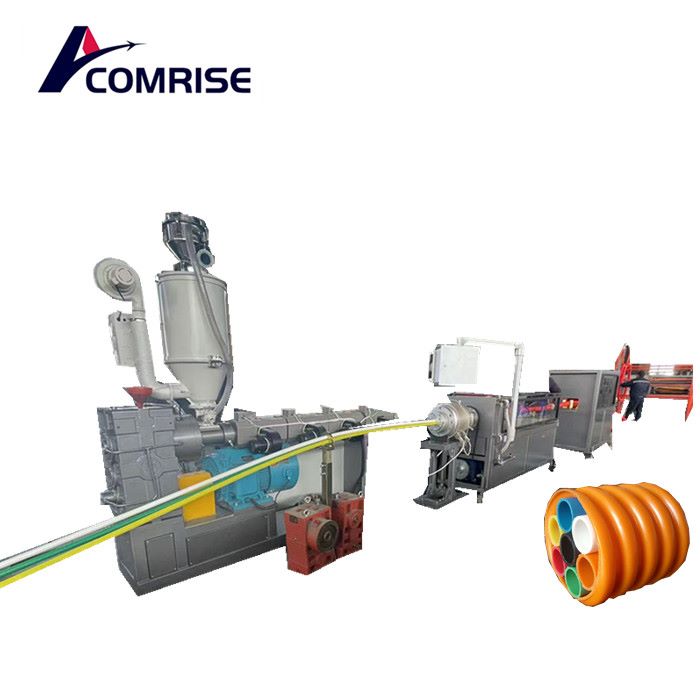

Corrugated Optic Duct Pipe Extrusion Machine

Advantages and functions of cluster tube and COD tube equipment:

advantage:

High production and processing efficiency.

Stable performance and reliable quality.

Function:

Corrugated Optic Duct Pipe Extrusion Machine

Mainly used for the production and installation of pipeline systems, providing stable and reliable pipeline connections.

Can meet the requirements of different engineering applications and ensure the smooth operation of pipelines.

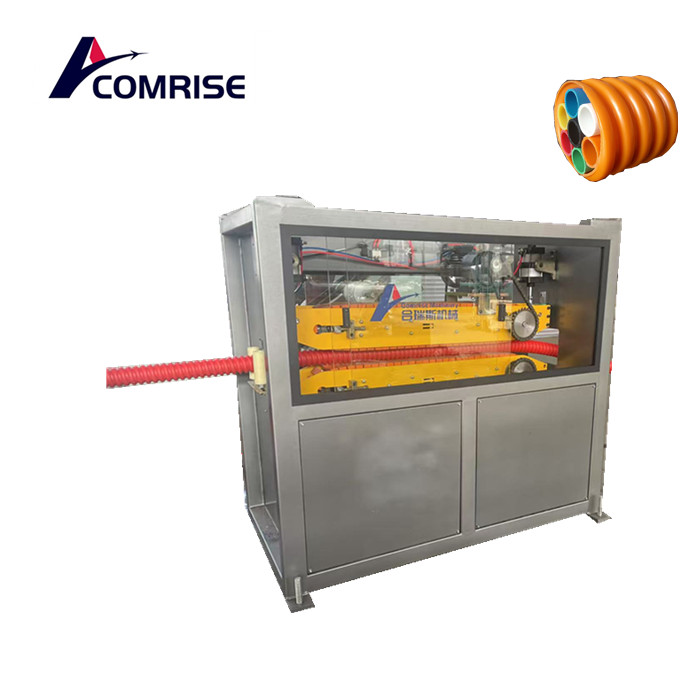

1. The pipe is extruded by the first extruder and then enters the twisting machine, while the basket co extrusion mold forms the shape of the pipe. 2. The pipe material is mainly made of high-density PE.

Main advantages

This type of pipeline has the advantages of corrosion resistance, lightweight, easy fixation, and long service life.

2. Pipelines are widely used in highways, municipal construction, apartments, etc.

Building drainage UPVC pipe HDPE pipe extruder five layer pipe production line process line

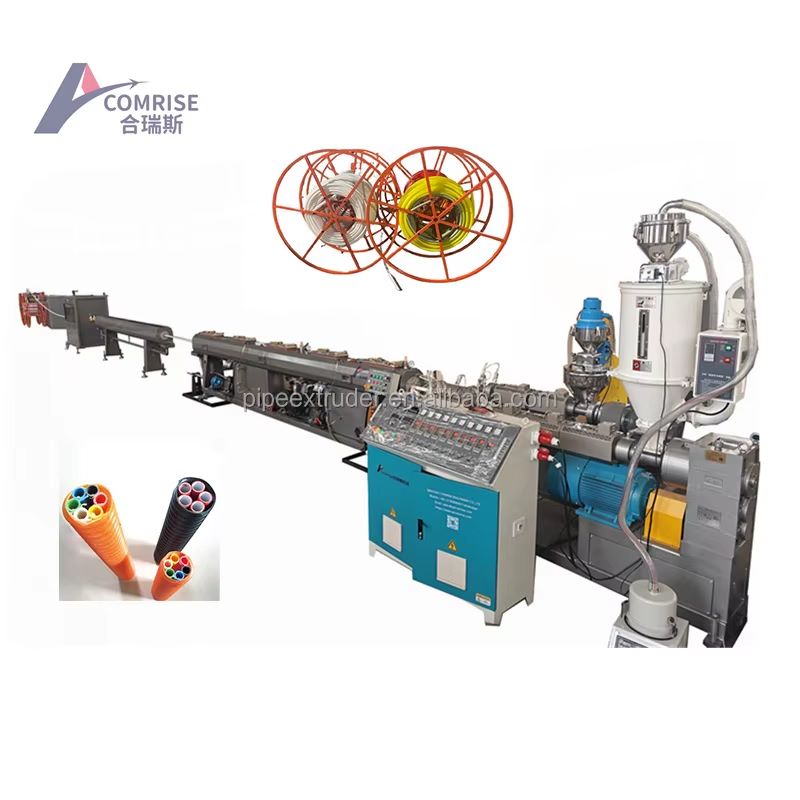

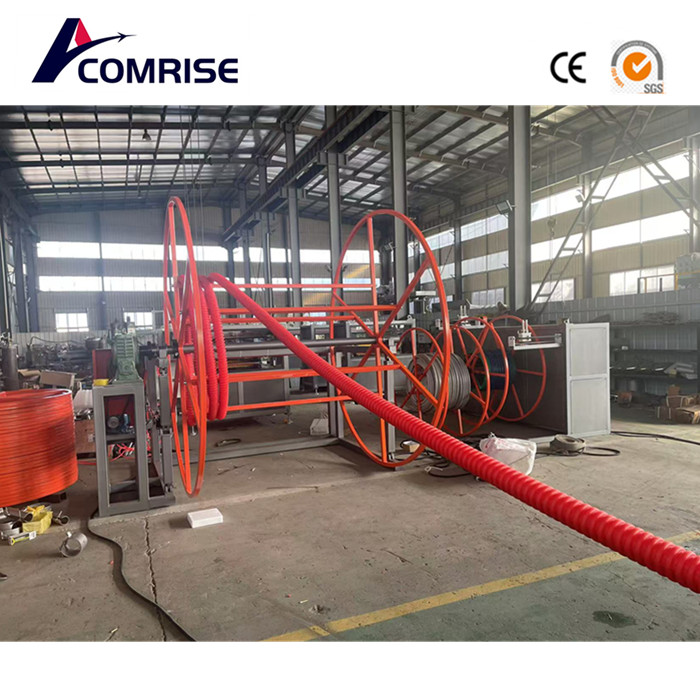

Raw material+masterbatch → mixing → vacuum feeding → material drying → single screw extruder → basket co extrusion die → calibrator → spray vacuum calibration tank → spray cooling water tank → belt traction → single screw extruder → coiler → coiler roll forming → water cooler → pipe rack → finished product inspection and packaging

The HDPE three-layer co extrusion gas pipeline extrusion equipment consists of an extruder, mold, calibration unit, cooling unit, traction unit, and cutting unit. Extruders are used to melt and extrude HDPE resin, while molds are used to shape pipes. The calibration unit is used to calibrate the diameter and thickness of the pipeline, and the cooling unit is used to cool the pipeline. The traction device is used to pull the pipeline, and the cutting device is used to cut the pipeline into a specified length.

The advantages of HDPE three-layer co extrusion gas pipeline extrusion equipment are as follows:

1. High production efficiency: The equipment adopts advanced extrusion technology, which can produce pipes at high speed, thereby improving production efficiency.

2. Good quality: The equipment uses high-quality extruders and molds to ensure the quality of the pipes.

3. Energy saving and environmental protection: The equipment adopts energy-saving motors and frequency converters, which can reduce energy consumption and noise.

4. Easy to operate: The equipment adopts a PLC control system, which can achieve automatic control and is easy to operate.

5. Wide applicability: This equipment can produce pipes of different diameters and thicknesses, and can be widely used in fields such as gas and water.
