Gas Pipe Machine

PE Gas Pipe Machine is real high speed and high output machine with newest design and famous electric brands for gas pipe making machine producing pp pe pipe for sizes from 20mm upto 1200mm. PE Pipe machine line composite high efficency screw extruder and high torque reducer motor, precison molds, two section vacuum water tank,haul off and cutter. For this hdpe pipe extrusion line maximum output can reach 80-600kgs per hour.

PE Gas Pipe Machine Product Parameters

PE Gas Pipe Machine Product Details

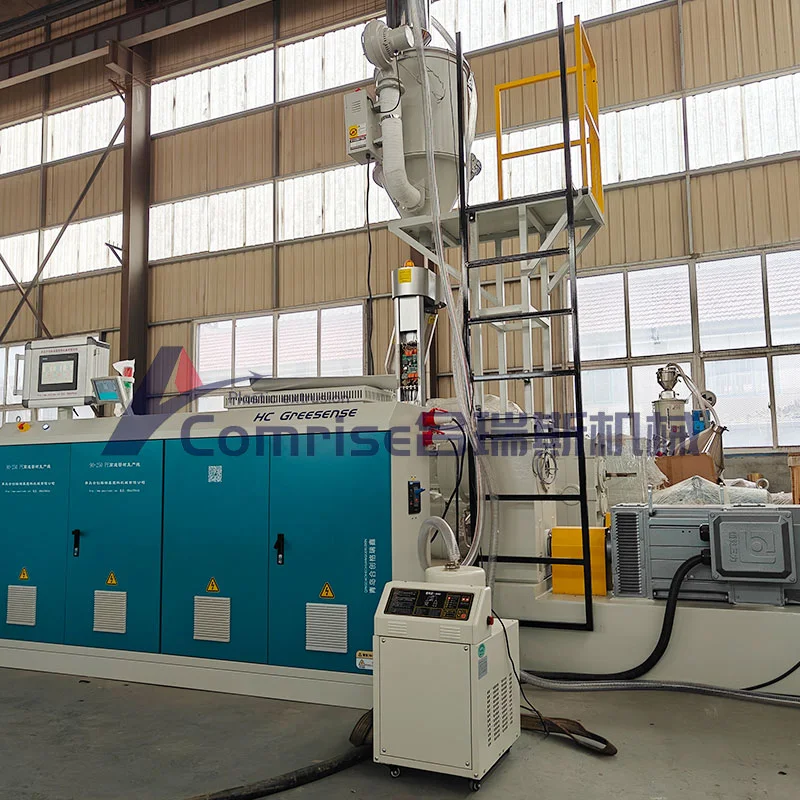

High efficiency single screw extruder

Srew adopt alloy screw, the inner surface of the screw and barrel is processed with nitriding, alloy spraying, Xinhengli energy-saving motor , Guomao high-torque reducer, vertical hard-tooth surface reduction box , and the gear box is strengthened by spiral reduction and grinding surface gear. Level braking, the control system adopts Schneider inverter (or equivalent brand)，Siemens low voltage electrical components.

Siemens contactor，customer can choose Meter weight control, Siemens PLC control system or OMRON digital control system

OMRON digital control

SIEMENS PLC control

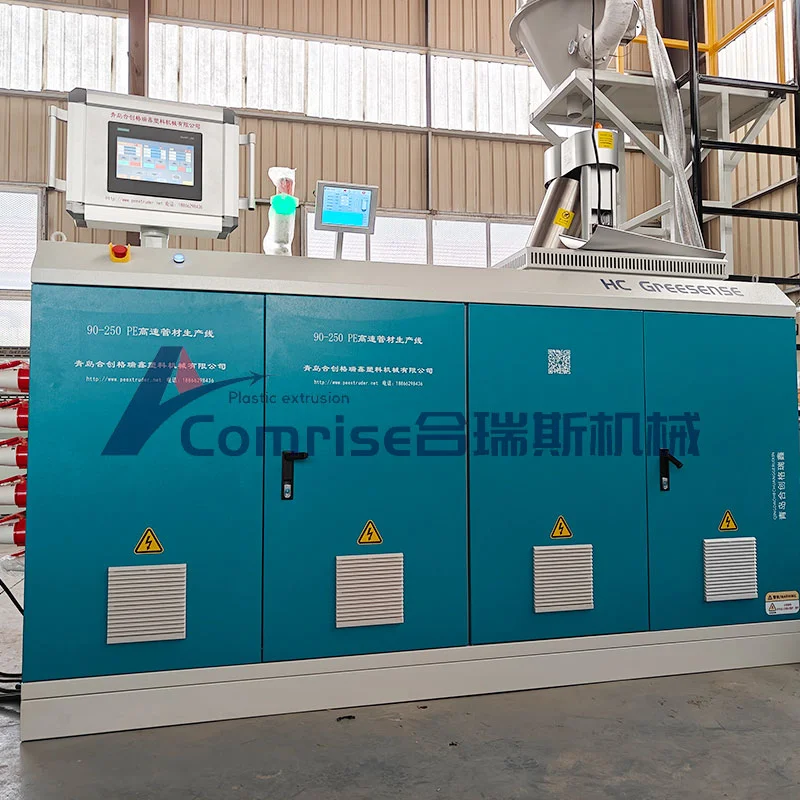

The running time of the entire PE pipe production line equipment is programmed by PLC, and is equipped with a good human-machine interface. All process parameters can be set and displayed through the touch screen.

Schneider inverter

Siemens contactor

Gravimetric weight meter control by PLC

Energy-saving ceramic heating ring and Cooling fans

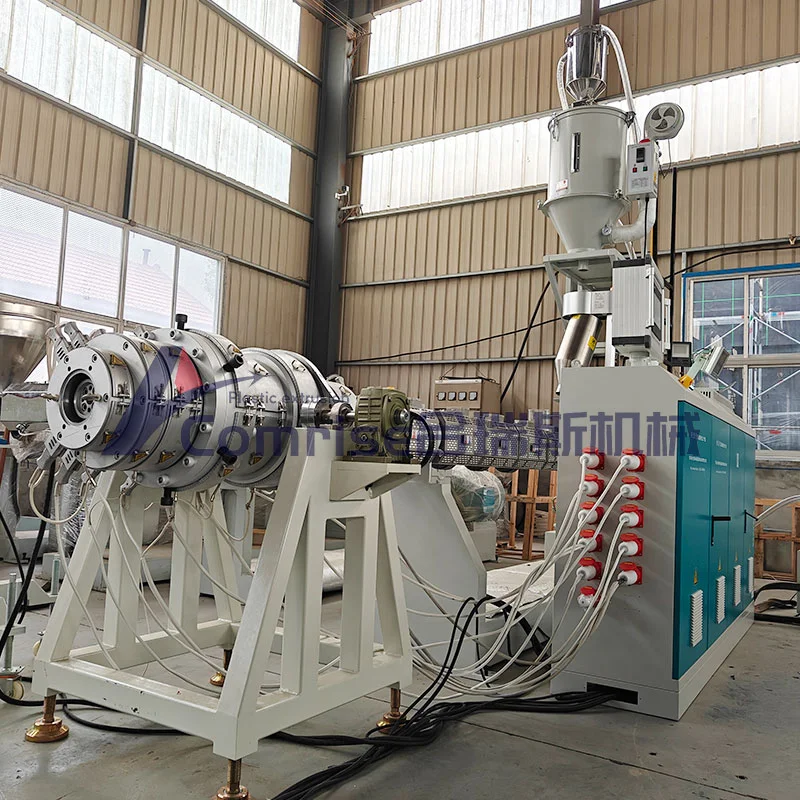

Pipe extrusion Die head mold

Spiral replaceable die head molds with core and bars sizes:φ110

160mm,200mm,225mm,250mm,315mm

The blue die head designed for HDPE pipes has the characteristics of low melt temperature, good mixing performance, low mold cavity pressure and stable production.

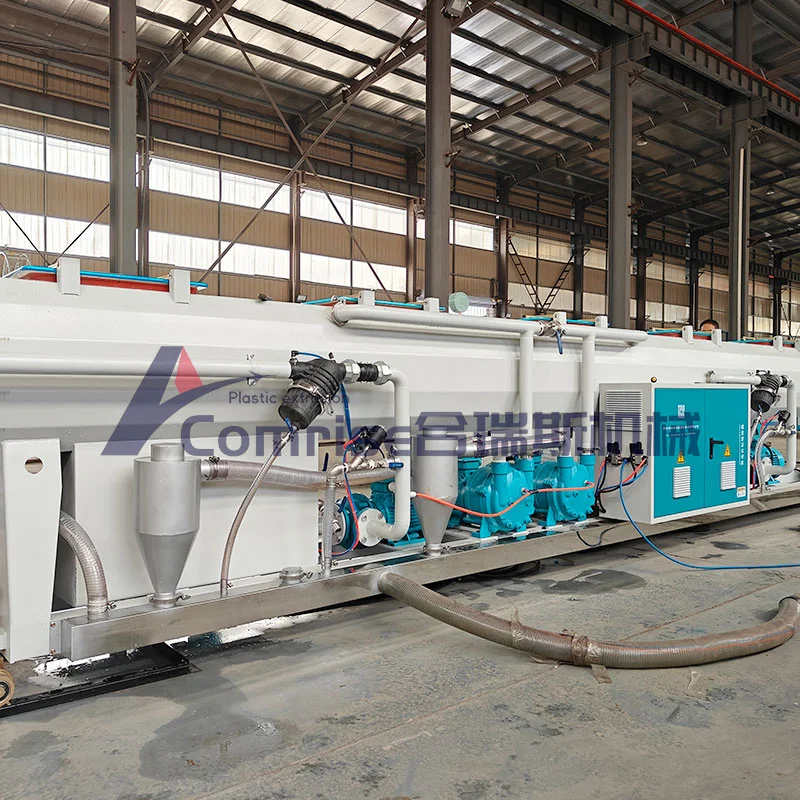

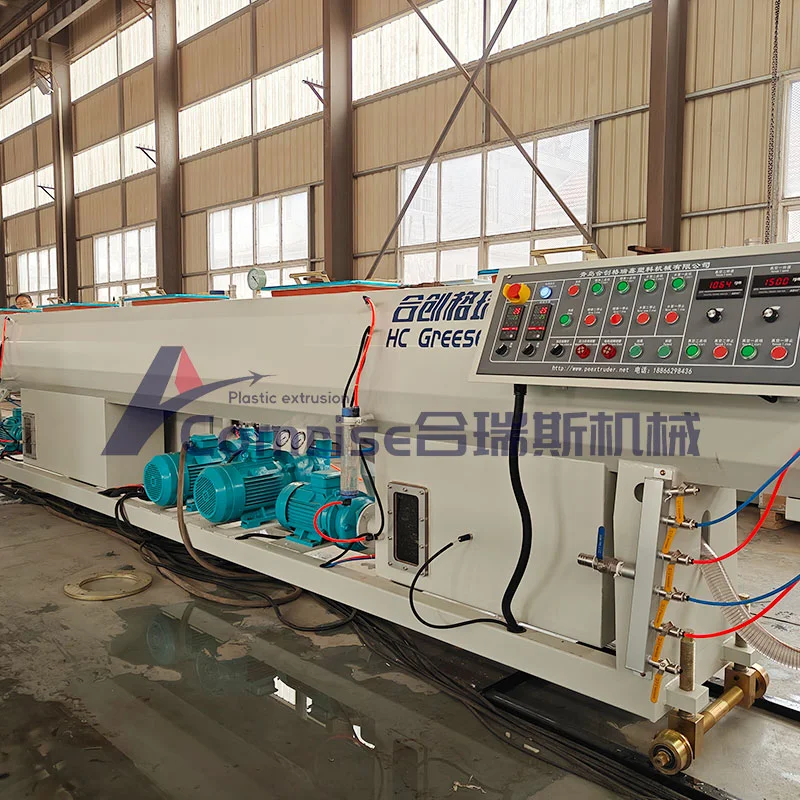

Vacuum water tank 9meters

Two section vacuum, with two sets of vacuum pumps , two sets of water pump, which ensure the dimensional stability and roundness of HDPE pipes, tank material: 4mm thickness stainless steel

―― vacuum pump 4+5.5KW, 2 sets

―― water pump 4+5.5KW, 2 sets

Combined with water temperature control, automatic drainage, automatic water replenishment

Spraying water tank

pe pipe tractor machine

The pe pipe tractor is driven and controlled by an imported speed regulator, which has good stability, high precision and high reliability.

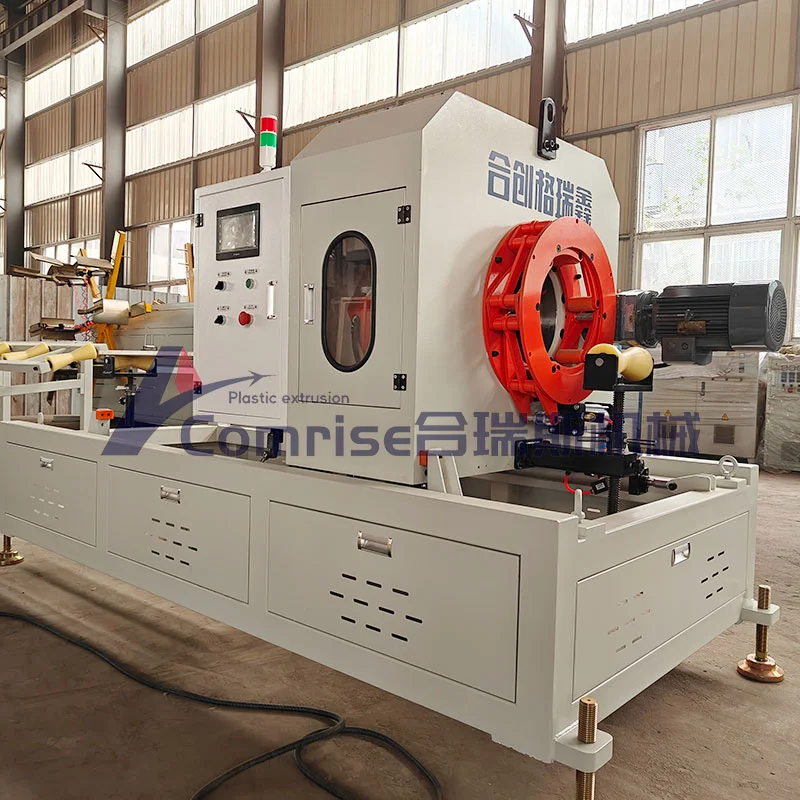

gas pipe cutter machine

- -Table movement mode Synchronous follow-up, and pneumatic reset

- -Cutting range Ø 110-315mm

- -The revolution, the motor power 2.2KW

- -Method of entering the knife Mechanical wire rod, stable without injury knife

Automatic flip rack

PE Gas Pipe Machine more detial photos for auxiliary parts vacuum pumps, water pumps, tractor V type block which can make pipe round shape, and cutter details.

PE Gas Pipe Machine Product Feature And Application

PE Gas Pipe Machine---High-efficiency extruder: forced cooling, reverse cooling, reverse spiral groove feeding section, equipped with high-speed and low-noise hard-tooth surface reduction box, high output, low boring melting temperature, and good energy saving effect

PE Gas Pipe Machine--- Spiral split-flow composite die head mold: ensure uniform melt pressure and flow without fluctuations, dense products, smooth surface, and no flow marks

PE Gas Pipe Machine---Vacuum sizing and cooling system: It adopts laminated sizing sleeve, which has fast cooling speed and high efficiency. The water tank is made of stainless steel.

PE Gas Pipe Machine---Traction: Use two-claw or multi-claw traction machine with variable frequency speed regulation.

PE Gas Pipe Machine---Cutting: planetary cutting, can cut large diameter thick wall pipes

PE Gas Pipe Machine---Marking line: in line with the machine head, co-extruded marking line

About our factory&workshop

Comrise machine are a new generation father-son plastic extrusion machine manufacture. Father was the first group of technicians to enter the plastic extrusion industry. Comrise has more than 30 years of experience in the industry, committed to providing quality, custom-made products at competitive prices, we have experienced technical team,after sale service team, ensuring our clients are satisfied with their purchases long. Our main scope business for HDPE gas and water pipe machines, large diameter spiral winding machines, plastic sheet and board machines and recycling solutions.

About our patent certificates

Delivery photos

Customer photo

Customer feedbacks

Requests for questions（RFQ）

Q1: Are you manufacture or trading company ?

A1：We are manufacture of machine

Q1：Question: What advantages of your machine?

A1：Quality 100% assured, famous electric brand, 24h time techincal support, Flexible payment term, Local consult office.

Q2: what’s the company paymet term?

A2: 30% deposit T/T,70%balance before shipment, Letter of Credit, west union , instgram , third party.

Q3: how long will it take to delivery after payment?

A3: Normaly 35-50 days manufacture time depend on certain machines.

Q4: Warranty terms of your machine?

A4: 12 months, starting from the machine receipt in customer's warehouse Free-of-charge of spare parts during warranty period.

Q5: What after sale service will offer ?

A5: Pre-sale communication → Design proposal, signature confirmation→ Customized production→ Test machine before shipment →Package & delivery→ Engineer installation→Training operator → Technical support
