Hdpe Pp Pe Ppr Pipe Machine
Innovation is at the core of everything that China Comrise does. As a hdpe pp pe ppr pipe machine manufacture in China, comrise seeks to galvanize the industry, China Comrise is constantly pushing the boundaries of what is possible. Their R&D team works tirelessly to develop new and exciting products and services that meet the evolving needs of clients worldwide.
Send Inquiry
Product Description

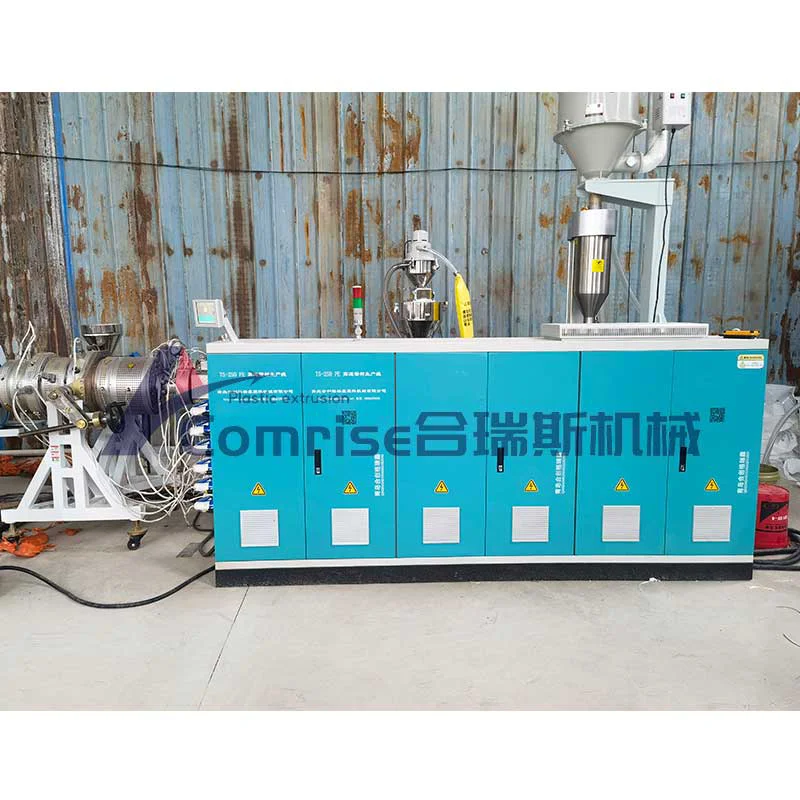

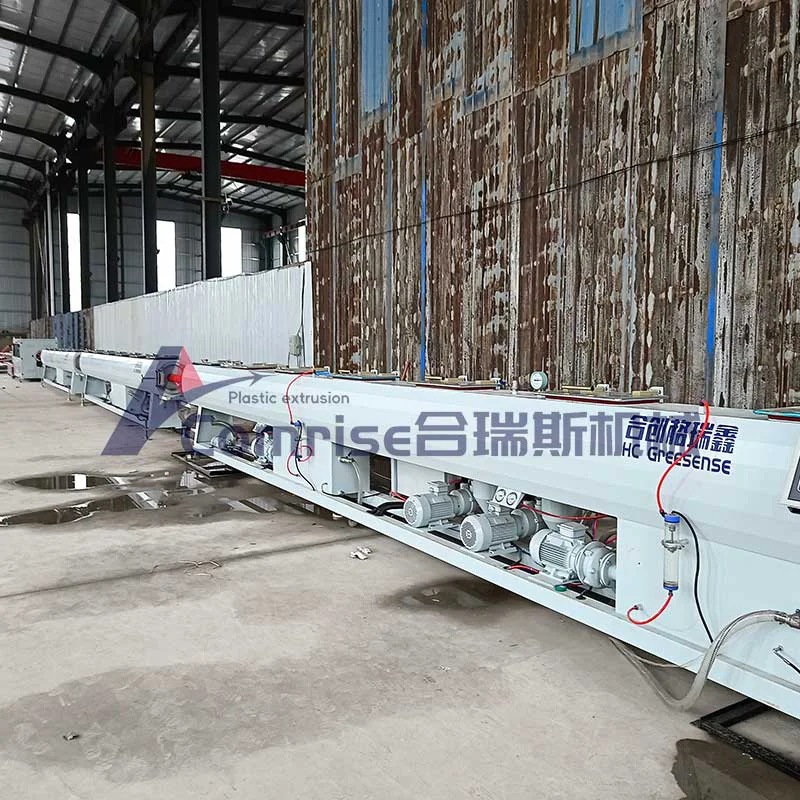

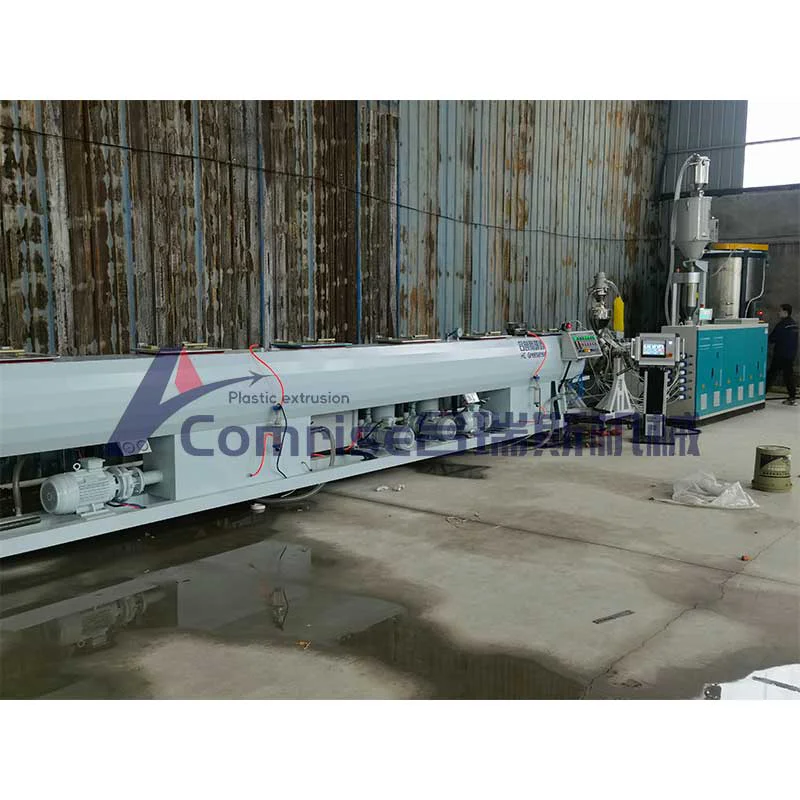

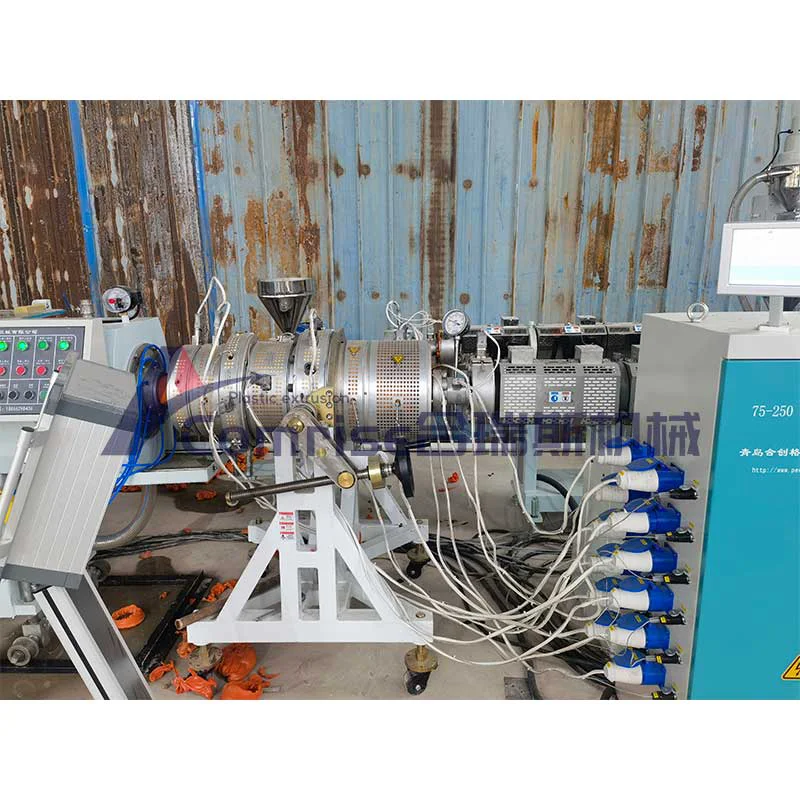

Introducing the Comrise Advanced hdpe pp pe ppr pipe machine - your solution to a high-quality and efficient pipe production process. With careful designing and precision engineering, this hdpe pp pe ppr pipe machine delivers outstanding performance, making it a top choice for businesses looking to raise their standards in the industry.
When it comes to maintenance, comrise low price hdpe pp pe ppr pipe machine is hassle-free. The upkeep is minimal, and the hdpe pp pe ppr pipe machine is designed to be easy to clean and maintain, making it an excellent addition to any plant.
The weight per meter for HDPE hdpe pe ppr pipe extrusion machine line
|
HDPE water supply pipe machine weight per meter table |
||||||||||
|
OD |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|||||
|
|
PressureMpa |
|||||||||
|
|
0.6 |
0.8 |
1.0 |
1.25 |
1.6 |
|||||
|
|
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
|
φ20 |
|
|
1.2 |
0.068 |
1.5 |
0.084 |
1.8 |
0.099 |
2.3 |
0.123 |
|
φ25 |
|
|
1.4 |
0.100 |
1.8 |
0.126 |
2.2 |
0.151 |
2.3 |
0.157 |
|
φ32 |
1.2 |
0.111 |
1.5 |
0.138 |
1.9 |
0.172 |
2.4 |
0.214 |
3 |
0.262 |
|
φ40 |
1.4 |
0.163 |
1.9 |
0.218 |
2.3 |
0.262 |
2.9 |
0.324 |
3.7 |
0.405 |
|
φ50 |
1.8 |
0.262 |
2.3 |
0.331 |
2.9 |
0.412 |
3.7 |
0.517 |
4.6 |
0.630 |
|
φ63 |
2.2 |
0.403 |
3.0 |
0.543 |
3.7 |
0.662 |
4.7 |
0.826 |
5.8 |
1.001 |
|
φ75 |
2.6 |
0.558 |
3.5 |
0.755 |
4.5 |
0.957 |
5.6 |
1.172 |
6.8 |
1.299 |
|
φ90 |
3.2 |
0.838 |
4.3 |
1.111 |
5.4 |
1.378 |
6.7 |
1.683 |
8.2 |
2.023 |
|
φ110 |
4.2 |
1.340 |
5.3 |
1.574 |
6.6 |
2.058 |
8.1 |
2.489 |
10.0 |
3.016 |
|
φ125 |
4.8 |
1.740 |
6.0 |
2.153 |
7.4 |
2.625 |
9.2 |
3.213 |
11.4 |
3.906 |
|
φ140 |
5.4 |
2.192 |
6.7 |
2.694 |
8.3 |
3.297 |
10.3 |
4.029 |
12.7 |
4.876 |
|
φ160 |
6.2 |
2.876 |
7.7 |
3.537 |
9.5 |
4.312 |
11.8 |
5.274 |
14.6 |
6.402 |
|
φ180 |
6.9 |
3.602 |
8.6 |
4.446 |
10.7 |
5.453 |
13.3 |
6.687 |
16.4 |
8.098 |
|
φ200 |
7.7 |
4.466 |
9.6 |
5.513 |
11.9 |
6.751 |
14.7 |
8.216 |
18.2 |
9.979 |
|
φ225 |
8.7 |
5.644 |
10.8 |
6.977 |
13.4 |
8.651 |
16.6 |
10.433 |
20.5 |
12.643 |
|
φ250 |
9.6 |
6.960 |
11.9 |
8.545 |
14.8 |
10.498 |
18.4 |
12.852 |
22.7 |
15.561 |
|
φ280 |
10.7 |
8.690 |
13.4 |
10.774 |
16.6 |
13.187 |
20.6 |
16.116 |
25.4 |
19.503 |
|
φ315 |
12.1 |
11.054 |
15.0 |
13.572 |
18.7 |
16.711 |
23.2 |
20.417 |
28.6 |
24.703 |
|
φ355 |
13.6 |
14.003 |
16.9 |
17.233 |
21.1 |
21.248 |
26.1 |
25.889 |
32.2 |
31.348 |
|
φ400 |
15.3 |
17.751 |
19.1 |
21.941 |
23.7 |
26.897 |
29.4 |
32.860 |
36.3 |
39.817 |
|
φ450 |
17.2 |
22.451 |
21.5 |
27.834 |
26.7 |
34.086 |
33.1 |
41.618 |
40.9 |
50.463 |
|
φ500 |
19.1 |
27.702 |
23.9 |
34.317 |
29.7 |
42.126 |
36.8 |
51.408 |
45.4 |
62.245 |
|
φ560 |
21.4 |
34.761 |
26.7 |
42.944 |
33.2 |
52.747 |
41.2 |
64.464 |
50.8 |
78.013 |
|
φ630 |
24.1 |
44.039 |
30.0 |
54.286 |
37.4 |
66.842 |
46.3 |
81.506 |
57.2 |
98.818 |
|
φ710 |
27.2 |
56.012 |
33.9 |
69.124 |
42.1 |
84.803 |
52.2 |
103.557 |
64.5 |
125.741 |
|
φ800 |
30.6 |
71.005 |
38.1 |
87.547 |
47.4 |
107.587 |
58.8 |
121.441 |
72.6 |
159.466 |
PE water supply pipe standard-(GB/T 13663-2000)
This standard specifies the product specifications, technical requirements, test methods, inspection rules, marking, packaging, transportation, Storage. This standard also specifies basic performance requirements for raw materials, including a classification system.
This standard applies to water supply pipes made of PE63, PE 80 and PE 100 materials. The nominal pressure of the pipe is 0.32MPa~1.6MPa, and the nominal outer diameter is 16 mm~1000 mm.
The pipes specified in this standard are suitable for general-purpose pressure water transmission at temperatures not exceeding 40C, as well as for the transportation of drinking water.
Why is HDPE used for hdpe pe ppr pipe ?
High-density polyethylene (HDPE) pipes are effective for the large scale transfer of liquids given that they can withstand high amounts of pressure and are unaffected by rust due to their thermoplastic quality. Unlike traditional metal pipe fittings, HDPE pipes do not rust, corrode or rot.
Product application scenarios
