MPP Pipe Production Line

MPP Pipe Production Line Main Techinical Parameters:

Unit name: (MPP/PE) pipe production unit

Model: PE-250

Polyethylene pipe unit specifications and technical specifications:

Product specifications: Outer diameter φ110-160-200

Inner diameter specification: φ100-150-175-200SN24-SN32-SN40 provided by customer

1)Resin used: polyethylene ppk8003 PE80.PE100

2)Extrusion volume:

3)Extruder model Extrusion material Extrusion capacity Remarks

4)GSJ75×38 PE80, PE100 450-600KG/H efficient host

5)SJ55×33 PE80, PE100 80KG/H inner and outer coating

6)*The extrusion amount may vary depending on the processing materials and operating conditions.

7)Production line speed: 0.3—5.5m/min

8)Center height of extruder: 1000mm

MPP Pipe Production Line Composition Lists:

φ90 (1.6MPA) specification output is not less than 420kg/h;

φ110 (1.6MPA) specification output is not less than 460kg/h.

φ160 (1.0MPA) specification output is not less than 550kg/h. PP material output is less than 10%

GET A QUOTATION NOW

MPP Pipe Production Line Product Details Photos

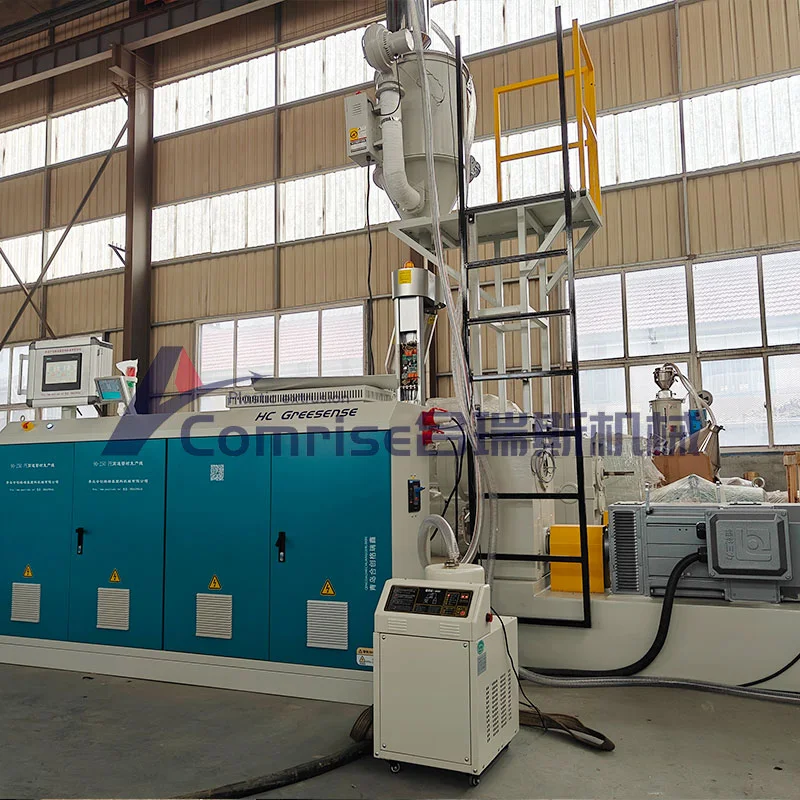

75-250mm MPP Power Electric Pipe Production Line---SJ75/38 High efficiency single screw extruder.

Due to the optimized screw and new slotted sleeve design, the extruder has the following advantages: high plasticization rate, uniform melt, and continuous and stable production. High-performance gearbox reducer with large torque, long life and low noise. The driving motor is an AC motor.

1) Model TS75×38

2) Screw (Zhoushan Huafu)

Diameter 75mm

Aspect ratio 38:1

Material 38CrMoAlA

motor

Mode AC motor

Power 160KW

Motor controller AC frequency conversion (Schneider)

PLC programmable computer control system

The control adopts human-machine interface computer control, large-screen color LCD screen 10.4” 640×480 resolution, operating parameters can be freely defined and displayed on all monitor screens, such as speed, temperature optimization settings, which can be stored once created , and also has the following important alarm and stop functions (1) After the main motor rotates, the maximum torque is allowed to be 105% for 3 minutes, the alarm is displayed, and then stops. The entire system adopts a distributed network structure, which not only has speed synchronization control function, but also has intelligent management Function.

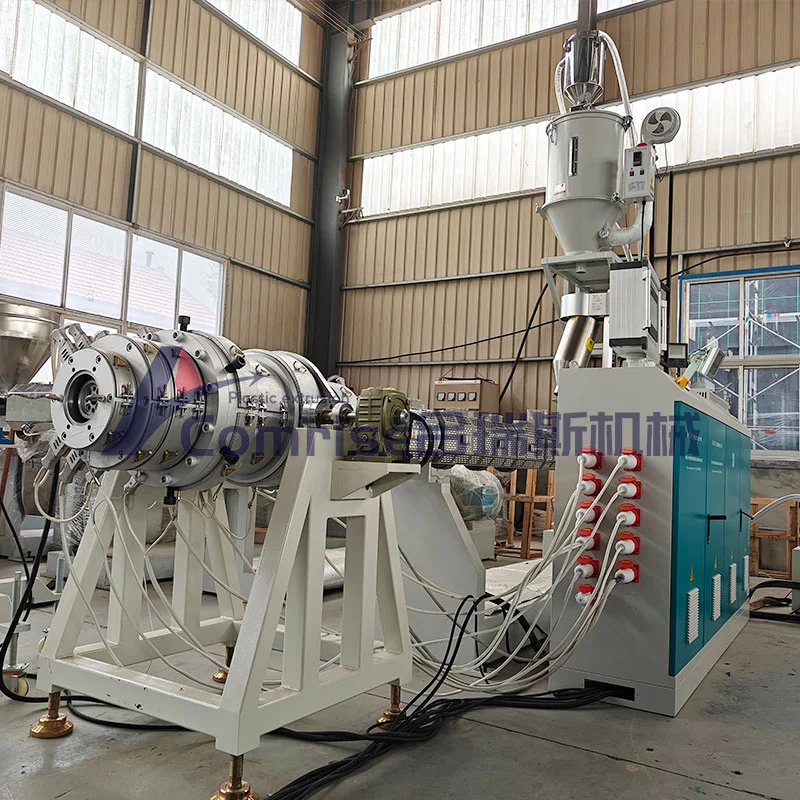

MPP Pipe Production Line---SJ55/33 co extrusion machine

Composite machine head with replaceable core mold (the oil temperature of the mold core is controlled, the inner wall of the pipe is super cooled by vacuum suction, and the sizing sleeve adopts the internal water ring high-speed cooling method)

Φ75～Φ250 one set of mold body, with reversible mold trolley;

Method Spiral replaceable die, mandrel

16 heating control zones, ceramic or mica heating rings

Power Max 80KW

Replaceable sizing sleeve, replaceable die, replaceable mandrel, pressure level can be selected according to customer needs

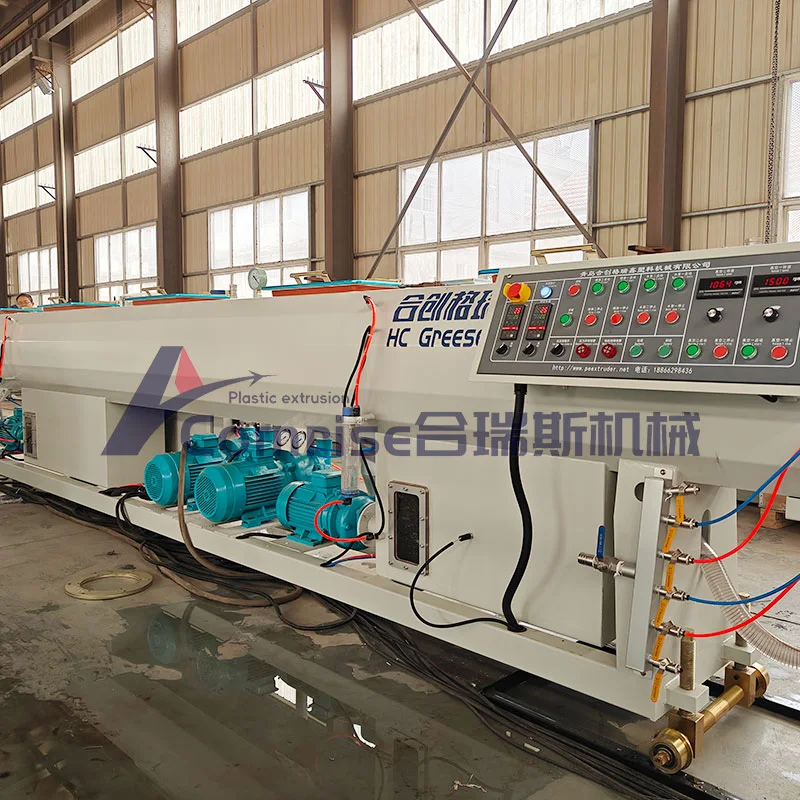

MPP Pipe Production Line---Vacuum sizing box (9 meters)

The main function of the vacuum sizing table is to sizing and cool pipes. A filter system and a bypass circulation path are installed on the water circulation path. It also has automatic monitoring of water level and water temperature. The sizing plate is installed on the vacuum sizing table. .

Vacuum pump 4KW 1 set 5.5KW 1 set

Water pump 5.5kW, 1 set, 7.5KW, 1 set

Box material stainless steel

MPP Pipe Production Line---Spray box specifications (8 meters) 2sets

Water pumpe 5.5kw

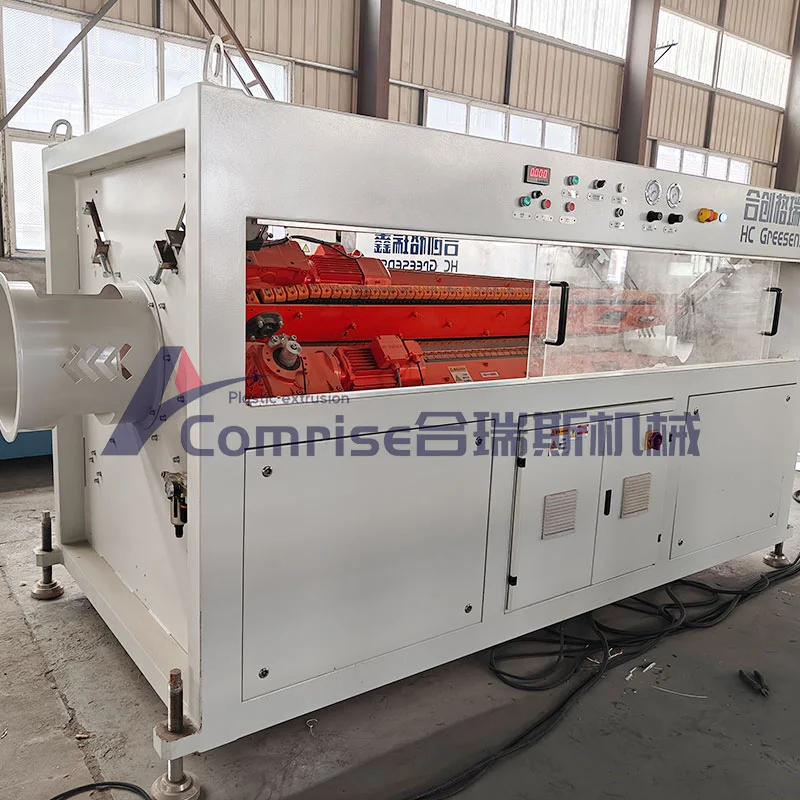

MPP Pipe Production Line---Crawler tractor

The traction device is designed to pull pipes in a continuous and stable state. Its outstanding features are compact structure, maintenance-free structure and absolute stability in operation.

Traction method: four crawler belt clamping

Clamping form Pneumatic clamping

MPP Pipe Production Line---Chipless cutting

An adjustable length measuring device is used, including an incremental encoder and a measuring wheel, installed on the tractor, so that length cutting can be accurately measured.

Rotary hydraulic chipless cutting

Pneumatic clamping system

Pneumatic worktable displacement

Cutting outer diameter up to 250mm

Cutting accuracy ≤5mm

Large plate revolution motor 1.5 KW

Hydraulic feed motor 0.75 KW

MPP Pipe Production Line---Pipe stacking rack

Method pneumatic turning and blanking

Stacking length 7 meters

MPP Pipe Production Line---Gravimetric weight meter control

MPP Pipe Production Line more detial photos for auxiliary parts motor, inverter, contactor, vacuum pumps, water pumps, tractor V type block which make pipe round shape, and cutter details.
