Pe Plastic Pipe Extruding Machine
Looking for the perfect HDPE pe plastic pipe extruding machine? Look no further than the China Comrise. With its advanced design, our pe plastic pipe extruding machine excels in producing high-output HDPE PE pipes and tubes of all sizes. And with our user-friendly interface, even those new to the industry will find it easy to operate. What sets the China Comrise apart from our competitors is our commitment to quality and customer satisfaction. Our team of experts is dedicated to providing you with the best possible products and services.
Send Inquiry
Product Description

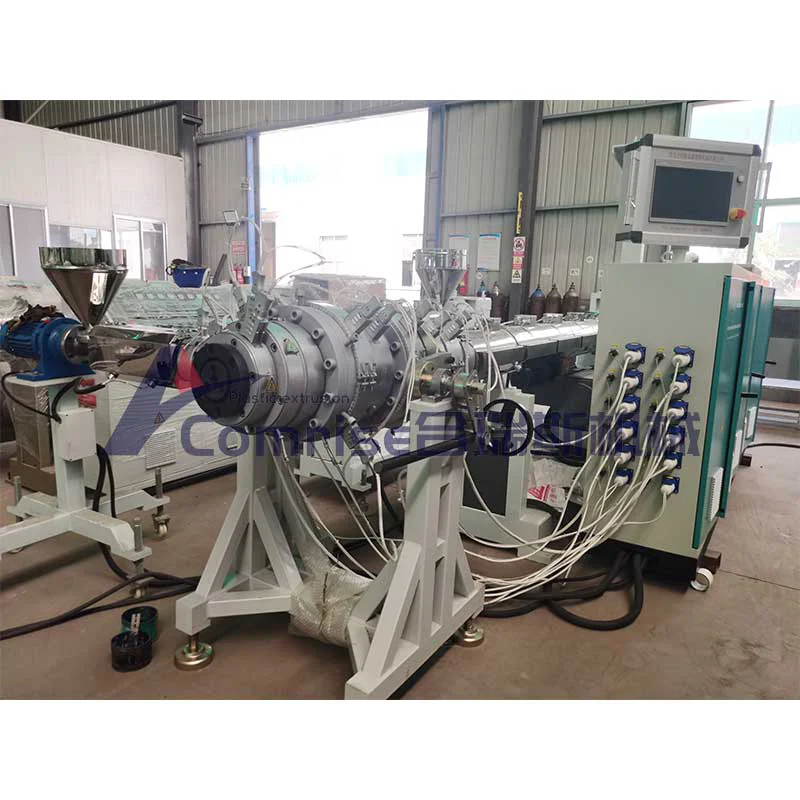

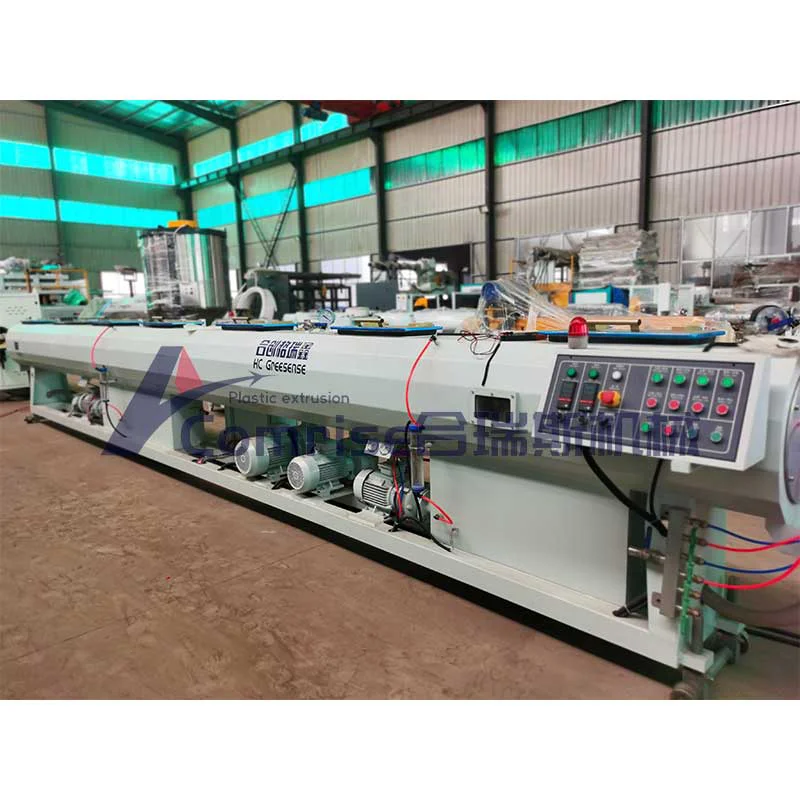

PE plastic pipe extruding machine is a high-quality device that is used for extruding and forming PE pipes of different sizes and lengths. This machine is highly efficient and reliable and provides excellent results with minimal labor requirements. PE plastic pipe extruding machine is designed for both small and large scale production and is ideal for producing PE pipes that are used in various industries such as agriculture, construction, water supply, gas supply, telecommunications, and more.
Features:
1. High-Performance Extrusion System
The PE plastic pipe extruding machine comes equipped with a cutting-edge extrusion system that provides high-performance and accuracy throughout the piping process. The system is designed to perform at high-speed levels and maintain a stable constant flow rate, which ensures the production of high-quality pipes.
2. User-Friendly Control System

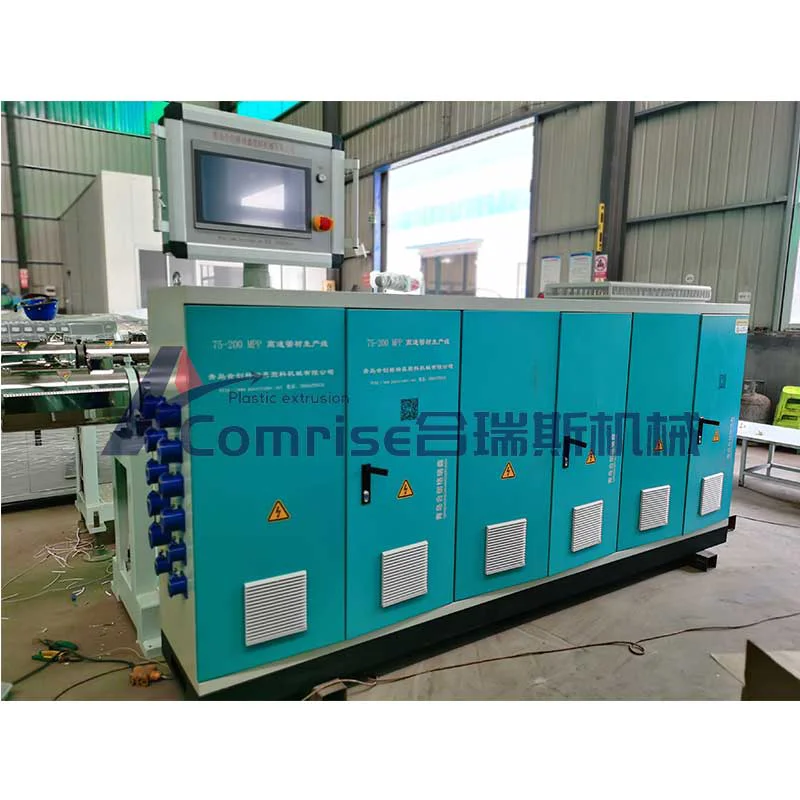

The PE plastic pipe extruding machine is equipped with a user-friendly control system that enables easy operation and management. The control system is intuitive and easy to use, which means that operators do not require a high level of technical knowledge to utilize it effectively. This feature also reduces the chances for accidents and mismanagement.
3. High-Quality Components
The PE plastic pipe extruding machine is made up of high-quality components that are capable of withstanding heavy usage and harsh operating conditions. The machine is built to last for many years without requiring frequent repairs or replacement of parts.
4. Versatile
The machine can be used for producing pipes of different sizes and lengths, depending on the requirements of the end-users. This makes it possible to meet the diverse needs of the market and provide customized solutions for each application.
The weight per meter for HDPE hdpe pe ppr pipe extrusion machine line
|
HDPE water supply pipe machine weight per meter table |
||||||||||
|
OD |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|||||
|
|
PressureMpa |
|||||||||
|
|
0.6 |
0.8 |
1.0 |
1.25 |
1.6 |
|||||
|
|
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
Wall thickness |
Weight |
|
φ20 |
|
|
1.2 |
0.068 |
1.5 |
0.084 |
1.8 |
0.099 |
2.3 |
0.123 |
|
φ25 |
|
|
1.4 |
0.100 |
1.8 |
0.126 |
2.2 |
0.151 |
2.3 |
0.157 |
|
φ32 |
1.2 |
0.111 |
1.5 |
0.138 |
1.9 |
0.172 |
2.4 |
0.214 |
3 |
0.262 |
|
φ40 |
1.4 |
0.163 |
1.9 |
0.218 |
2.3 |
0.262 |
2.9 |
0.324 |
3.7 |
0.405 |
|
φ50 |
1.8 |
0.262 |
2.3 |
0.331 |
2.9 |
0.412 |
3.7 |
0.517 |
4.6 |
0.630 |
|
φ63 |
2.2 |
0.403 |
3.0 |
0.543 |
3.7 |
0.662 |
4.7 |
0.826 |
5.8 |
1.001 |
|
φ75 |
2.6 |
0.558 |
3.5 |
0.755 |
4.5 |
0.957 |
5.6 |
1.172 |
6.8 |
1.299 |
|
φ90 |
3.2 |
0.838 |
4.3 |
1.111 |
5.4 |
1.378 |
6.7 |
1.683 |
8.2 |
2.023 |
|
φ110 |
4.2 |
1.340 |
5.3 |
1.574 |
6.6 |
2.058 |
8.1 |
2.489 |
10.0 |
3.016 |
|
φ125 |
4.8 |
1.740 |
6.0 |
2.153 |
7.4 |
2.625 |
9.2 |
3.213 |
11.4 |
3.906 |
|
φ140 |
5.4 |
2.192 |
6.7 |
2.694 |
8.3 |
3.297 |
10.3 |
4.029 |
12.7 |
4.876 |
|
φ160 |
6.2 |
2.876 |
7.7 |
3.537 |
9.5 |
4.312 |
11.8 |
5.274 |
14.6 |
6.402 |
|
φ180 |
6.9 |
3.602 |
8.6 |
4.446 |
10.7 |
5.453 |
13.3 |
6.687 |
16.4 |
8.098 |
|
φ200 |
7.7 |
4.466 |
9.6 |
5.513 |
11.9 |
6.751 |
14.7 |
8.216 |
18.2 |
9.979 |
|
φ225 |
8.7 |
5.644 |
10.8 |
6.977 |
13.4 |
8.651 |
16.6 |
10.433 |
20.5 |
12.643 |
|
φ250 |
9.6 |
6.960 |
11.9 |
8.545 |
14.8 |
10.498 |
18.4 |
12.852 |
22.7 |
15.561 |
|
φ280 |
10.7 |
8.690 |
13.4 |
10.774 |
16.6 |
13.187 |
20.6 |
16.116 |
25.4 |
19.503 |
|
φ315 |
12.1 |
11.054 |
15.0 |
13.572 |
18.7 |
16.711 |
23.2 |
20.417 |
28.6 |
24.703 |
|
φ355 |
13.6 |
14.003 |
16.9 |
17.233 |
21.1 |
21.248 |
26.1 |
25.889 |
32.2 |
31.348 |
|
φ400 |
15.3 |
17.751 |
19.1 |
21.941 |
23.7 |
26.897 |
29.4 |
32.860 |
36.3 |
39.817 |
|
φ450 |
17.2 |
22.451 |
21.5 |
27.834 |
26.7 |
34.086 |
33.1 |
41.618 |
40.9 |
50.463 |
|
φ500 |
19.1 |
27.702 |
23.9 |
34.317 |
29.7 |
42.126 |
36.8 |
51.408 |
45.4 |
62.245 |
|
φ560 |
21.4 |
34.761 |
26.7 |
42.944 |
33.2 |
52.747 |
41.2 |
64.464 |
50.8 |
78.013 |
|
φ630 |
24.1 |
44.039 |
30.0 |
54.286 |
37.4 |
66.842 |
46.3 |
81.506 |
57.2 |
98.818 |
|
φ710 |
27.2 |
56.012 |
33.9 |
69.124 |
42.1 |
84.803 |
52.2 |
103.557 |
64.5 |
125.741 |
|
φ800 |
30.6 |
71.005 |
38.1 |
87.547 |
47.4 |
107.587 |
58.8 |
121.441 |
72.6 |
159.466 |
PE water supply pipe standard-(GB/T 13663-2000)
This standard specifies the product specifications, technical requirements, test methods, inspection rules, marking, packaging, transportation, Storage. This standard also specifies basic performance requirements for raw materials, including a classification system.
This standard applies to water supply pipes made of PE63, PE 80 and PE 100 materials. The nominal pressure of the pipe is 0.32MPa~1.6MPa, and the nominal outer diameter is 16 mm~1000 mm.
The pipes specified in this standard are suitable for general-purpose pressure water transmission at temperatures not exceeding 40C, as well as for the transportation of drinking water.
Why is HDPE used for hdpe pe ppr pipe ?
High-density polyethylene (HDPE) pipes are effective for the large scale transfer of liquids given that they can withstand high amounts of pressure and are unaffected by rust due to their thermoplastic quality. Unlike traditional metal pipe fittings, HDPE pipes do not rust, corrode or rot.
GET A QUOTATION NOW
Product application scenarios
