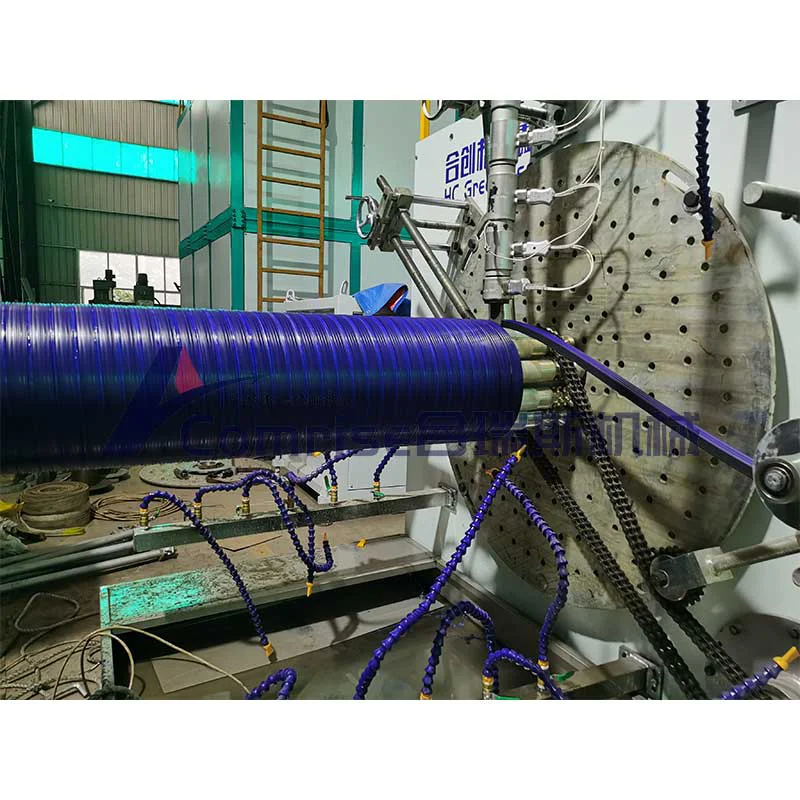

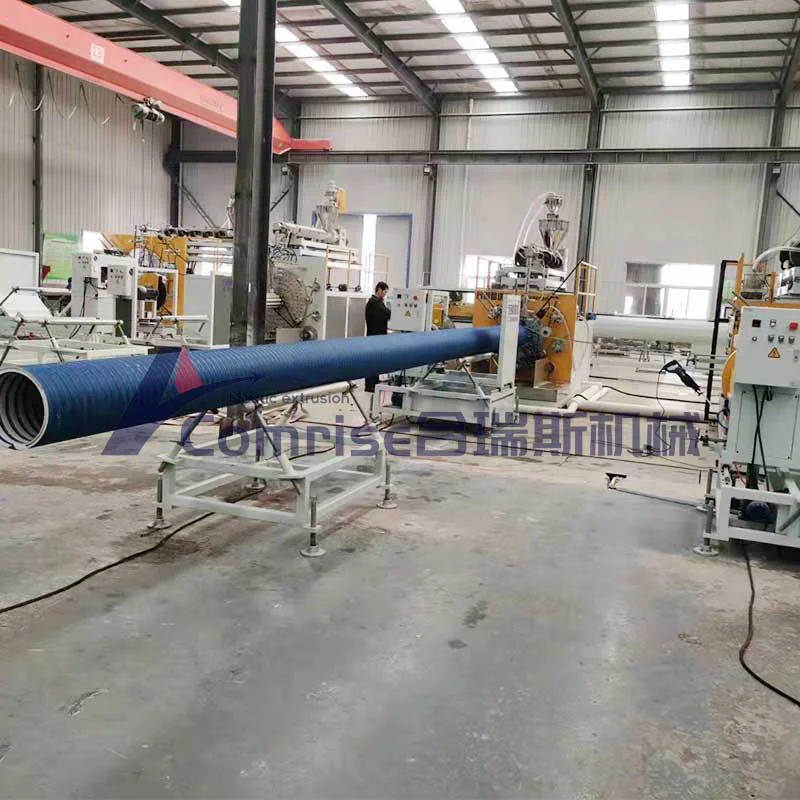

Spiral Tube Winding Machine

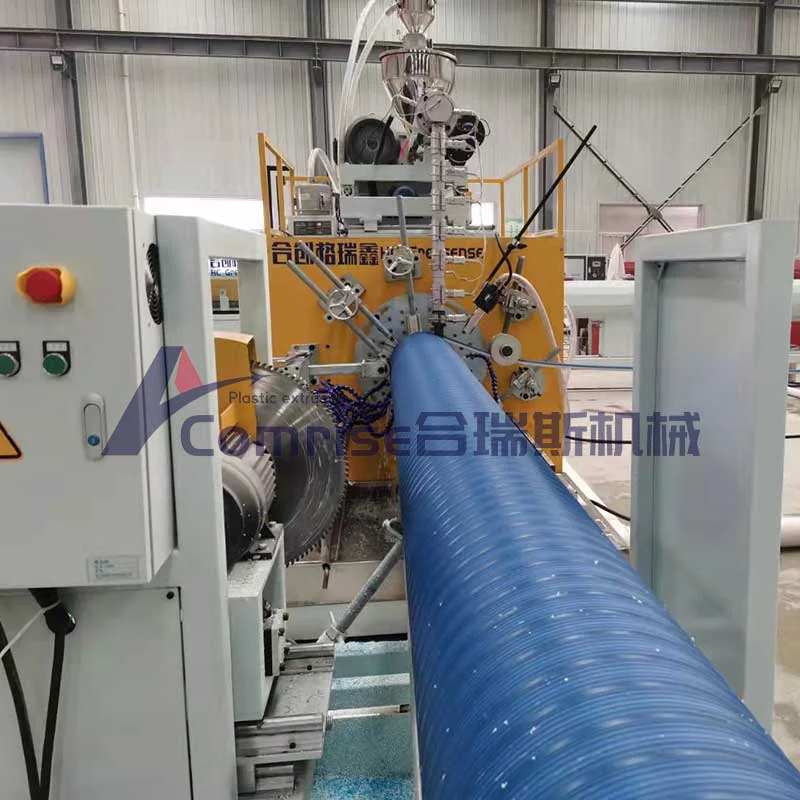

One of the key benefits of comrise spiral tube winding machine is its ease of operation. Comrise user-friendly control panel allows you to adjust all necessary parameters, including speed, length, diameter, and thickness, with ease. Plus, its automatic pipe cutting feature ensures that your pipes are precisely measured and cut every time, eliminating the need for manual cutting.

Comrise high quality spiral tube winding machine is also built to last. Its high-strength steel frame is designed to withstand heavy-duty work and is specifically coated to resist wear and rust. With this spiral tube winding machine, you can expect many years of trouble-free performance.

High quality spiral tube winding machine technical parameter:

GET A QUOTATION NOW

China comrise large diameter spiral winding pipe machine categories:

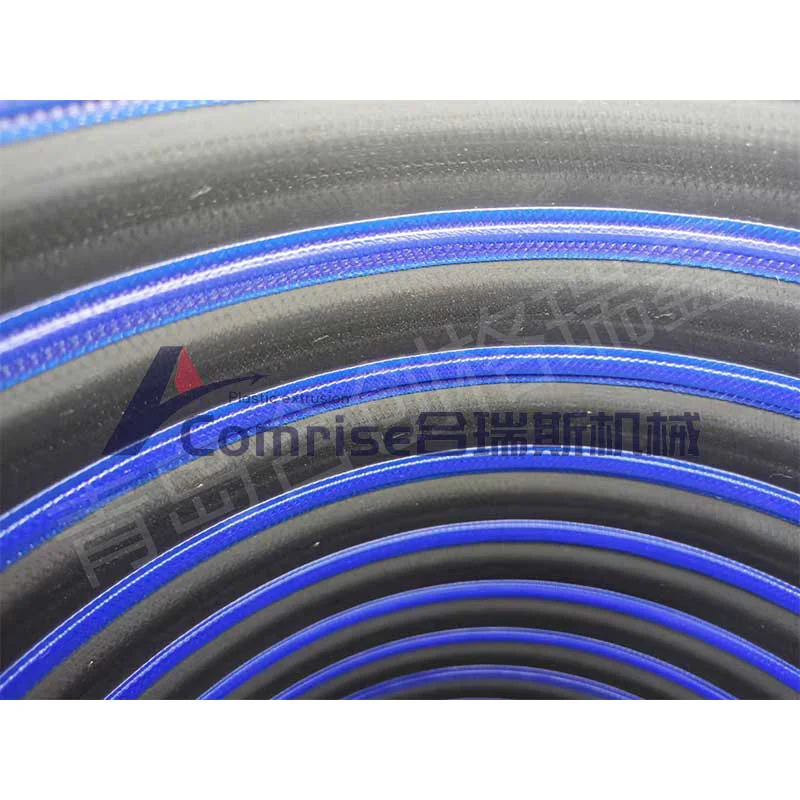

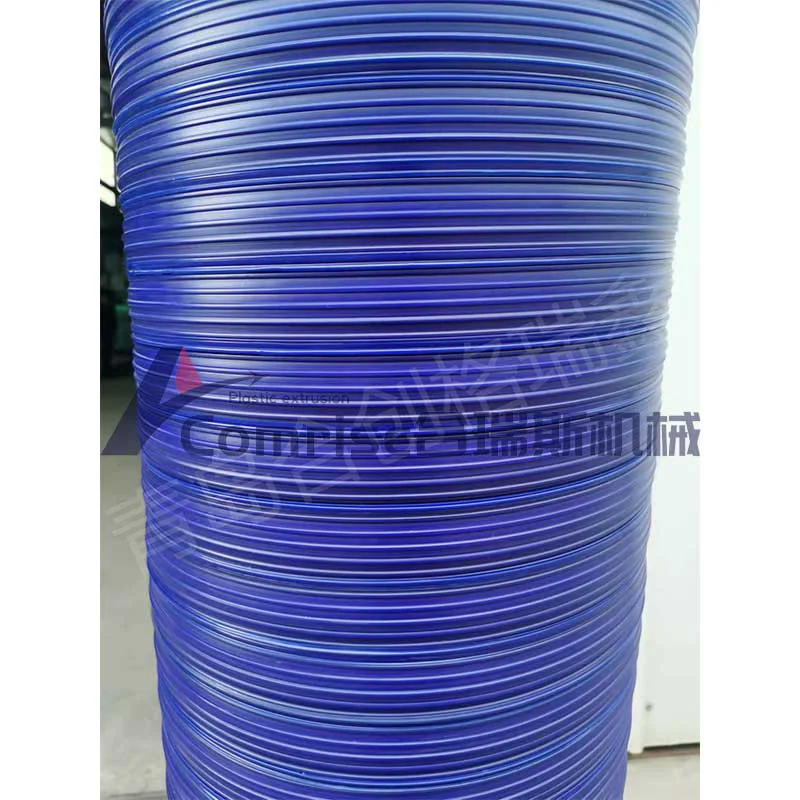

HDPE Spiral winding sewage pipe extrusion line can produce large diameter winding pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance. plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe production technology with the intellectual property. It can produce pipe size from Ø200~Ø4000mm which is widely used in fields of civil water drain, wastewater drain.

Steel reinforced hdpe spiral winding pipe machine can prodcue steel-wire frame polyethylene composite pipe which is reinforced through twisting steel-wire of high intensity into helix, made out of polyethylene of high intensity. The steel-wire frame is closely connected with the outer and inner polyethylene of high intensity adhesive resin layer which is a sort of great binding materials belonging to modified material of PE. It can be melt fully as one with PE in the heating conditions, while its polar bond has a strong adhesive property with the steel. Because of the adhesive resin, the pipe is more excellent in composition.

Solid wall winding pipe machine for large diameter used for well pipe, pull pipe, underground drainage etc. Machine can customized as per customer detail requirements.

Large Diameter HDPE/PP Hot Winding Structured Wall Krah Pipe Extruding Machine Line. Pipe Diameters: DN200 to DN4000, Ring Sriffness: from SN2 to SN16. Krah Pipe Wall Structure: PR OP SQ SP VW ST.

Double plastic composite winding pipe machine can produce FRPE double-plastic composite structural wall pipe is a flexible pipe with good extensibility, so it is suitable for construction and foundation settlement under poor ground conditions, especially in coastal areas, the foundation is poor and the settlement is serious. This type of pipe can greatly adapt to uneven settlement. Light weight, easy to install: reduce labor intensity and shorten the construction period.

GET A QUOTATION NOW

Double high-reinforced polyethylene (HDPE) winding pipe production line

1. PE large-diameter winding karat pipe production line High-density polyethylene structural wall hot-wound pipe is a new type of special-shaped structural wall pipe, which is made by high-density polyethylene hot-winding molding process.

2. The product is made of high-density polyethylene resin (HDPE) as raw material, PP or PE corrugated pipe as auxiliary support pipe, and high-density polyethylene large-diameter winding reinforced pipe produced by hot winding molding process.

3. Because this kind of pipe was originally introduced by a domestic company from the German Carat Company, this kind of pipe is commonly known as the Carat pipe in China.

4. The official name of this kind of pipe in China is: high-density polyethylene structural wall thermal winding pipe, and the national standard is GB/T 19472. 2-2004 B-type structural wall pipe.

5. This product is an environmentally friendly and safe product with the advantages of light weight, strong pressure-bearing capacity, high interface quality, long life, corrosion resistance, high ring stiffness, and convenient construction. It is widely used in urban water supply, drainage, and long-distance water supply. Water transmission and farmland irrigation and other projects.

6. The diameter ranges from DN200 to DN4000. The pipe is light in weight and has good overall flexibility. It is currently the main pipe of choice for buried sewage and drainage.

spiral duct manufacturing machine characteristics:

1. The high quality spiral tube winding machine adopts a high-efficiency single-screw extruder to ensure efficient and high-quality extrusion.

2. spiral tube winding machine made in China adopts a composite machine head, spiral rotation molding, exquisite mechanism and unique design to ensure high product quality.

3. Comrise supply spiral tube winding machine which is easy to operate, stable and reliable.

4. The pe hollow wall winding pipe can be used in plastic inspection wells and septic tanks, making construction convenient and safe.

5. spiral tube winding machine in stock can produce anti-static gas extraction and exhaust pipes for mines

6. Special pipe fittings are used for convenient connection and economical construction.

Why is the application for HDPE spiral winding corrugated pipe extrusion machine?

Application: Municipal works, water supply, water drainage; Telecom project; Industrial projects:

Urban underground drainage and sewage pipes.

Drainage and sewage pipes in factories and sewage treatment plants

Venting system pipes

Piping system for laying of electric/optical cable sheath

Seawater and rain water transportation pipes

Water gathering system and soakaway system

Agricultural irrigation pipes

Manufacturing of chemical process containers

Product application scenarios

GET A QUOTATION NOW

FAQ based on HDPE hollow wall spiral winding machine:

1.What is an HDPE hollow wall spiral winding machine?

---Firstly extrusion squre profile, then use a winding forming machine to shape large diameter, you can choose from 200mm-4000mm.

2.What are the features of an HDPE hollow wall spiral winding machine?

---High strength, good pressure resistance and impact resistance

3.What is the production capacity of an HDPE hollow wall spiral winding machine?

---Depend on model and pipe diameter sizes.

4.How long does it take to manufacture an HDPE pipe using the machine?

---30-40 working days.

5.What are the advantages of using an HDPE hollow wall spiral winding machine over traditional methods of pipe manufacturing?

---HDPE hollow wall spiral pipe has been successfully used as a drainage pipe to replace cement pipes and cast iron pipes.

6.Can the machine produce pipes of different sizes and shapes?

---yes sure, we provide custom made service as per customer detail requirements.

7.What is the maintenance cost of an HDPE hollow wall spiral winding machine?

---Machine can use 20 to 30 years, just change fast consumable parts.

8.Does the machine require specialized training to operate it?

---easy operation, we support on site installation if customer need.

9.Where can I buy an HDPE hollow wall spiral winding machine?

---from Qingdao comrise machinery co.,ltd

10.Is there a warranty for the machine and what is the duration of the warranty?

---Machine 18months warranty, and lifetime technical consultant service.
