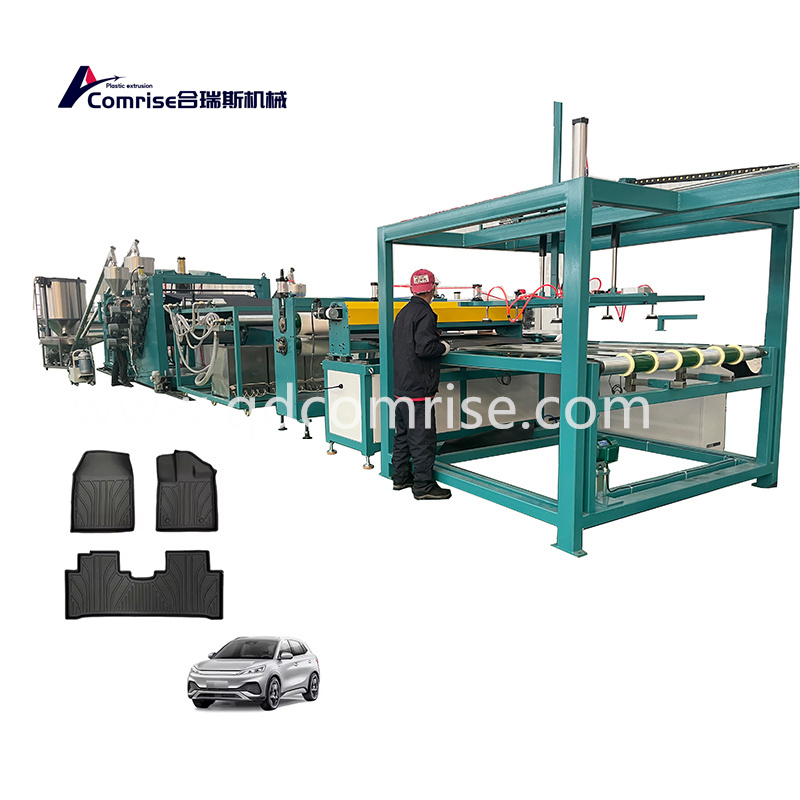

TPE Extruder for Car Mat

TPE Extruder for Car Mat Material use ABA three layers co-extrusion type to save material cost,

1. TPE Extruder for Car Mat ---SJ130x32 Single screw extruder

Heating power: 56kw (7*8kw)

Barrel cooling unit: Use fan 250w×7unit

Temp. Measurement devices: Use Thermocouple temperature measurement, OMRON temperature control watch

Motor: Ac motor 132kw

2. TPE Extruder for Car Mat----SJ75 x33 Single screw extruder for 3 layers coextrusion

Heating power: 25kw (5*5kw)

Barrel cooling unit: Use fan 250w×5unit

Temp. Measurement devices: Use Thermocouple temperature measurement, OMRON temperature control watch

Motor: Ac motor 37kw

3. TPE Extruder for Car Mat --------electrical control system

Temperature Controller: Omron

Frequency inverter: DELTA

AC contactor: SIEMENS contactor,

Electric cabinet mode: independent type

4. TPE Extruder for Car Mat----------Hydraulic screen changer

Mode: 130 +180 Plate type screen changer

Hydraulic pump power: 3KW with oil pump

Type: Double site hydraulic screen replacement

5. TPE Extruder for Car Mat-----Sheet mould

Mode: Coat-hanger type board mould

Valid width of mould: 1600mm, product width: 1500mm

Product thickness: 1.5-4mm

Flow channel mode: coat-hanger type flow channel

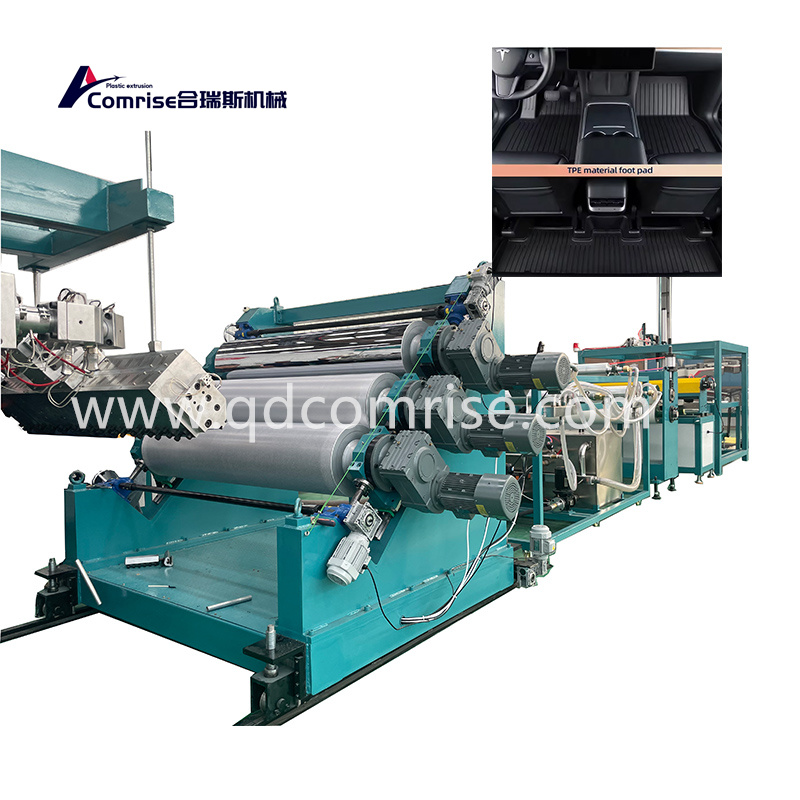

6. TPE Extruder for Car Mat------Three roller calendar

Roller type: The three rollers are 45 degree installed.

Three roller size: Diameter: Φ400mm, Length: =1700m

Motor of three-roller: AC motor, power: 1.5KW×3,six degree

Control unit: ABB/DELTA inverter control.3 rollers and haul-off can be regulated either independently or synchronously.

Bearing: Adopts thermo stability Self-aligning roller bearings.

7. TPE Extruder for Car Mat-------Cooling conveyer bracket

Cooling method: water-cooled bracket

water-cooled rollers: 4

Water cooled roller diameter: 150

Material of water-cooled roller: Q235-A, chrome plated

Cooling bracket length: 3 meters

8. TPE Extruder for Car Mat--------Edge cutting device

9. TPE Extruder for Car Mat-----Haul-off Machine

Traction rubber roller: 1 set of 2 rubber rollers, with pneumatic pressure control for each group

Rubber roller diameter: Diameter: Φ250mm, width:1700mm

Drive motor power: AC motor 2.2KW

Line speed: 1-5m/min

Control unit:  Adopts DELTA frequency inverter. The haul-off and calendar can be controlled simultaneously or independently

10. TPE Extruder for Car Mat-------Cutting machine

Control mode: PLC

Control unit length meter signal control, manual and automatic two modes of work.

11. TPE Extruder for Car Mat---------Manipulator Collection

Lateral movement motor power: 1.1kw

Vacuum generator: 2 units

Suction cup: 4

Vertical movement: Cylinder driven

Conveying sheet length: 1.2m

Motor power: 0.75kw

Discharge method: Mechanical arm

12. TPE Extruder for Car Mat----Heating oven

8000 * 2000*1200 （mm）

Motor: 90KW

13. vacuum forming

1700*1300*2500 （mm）

Motor: 3KW

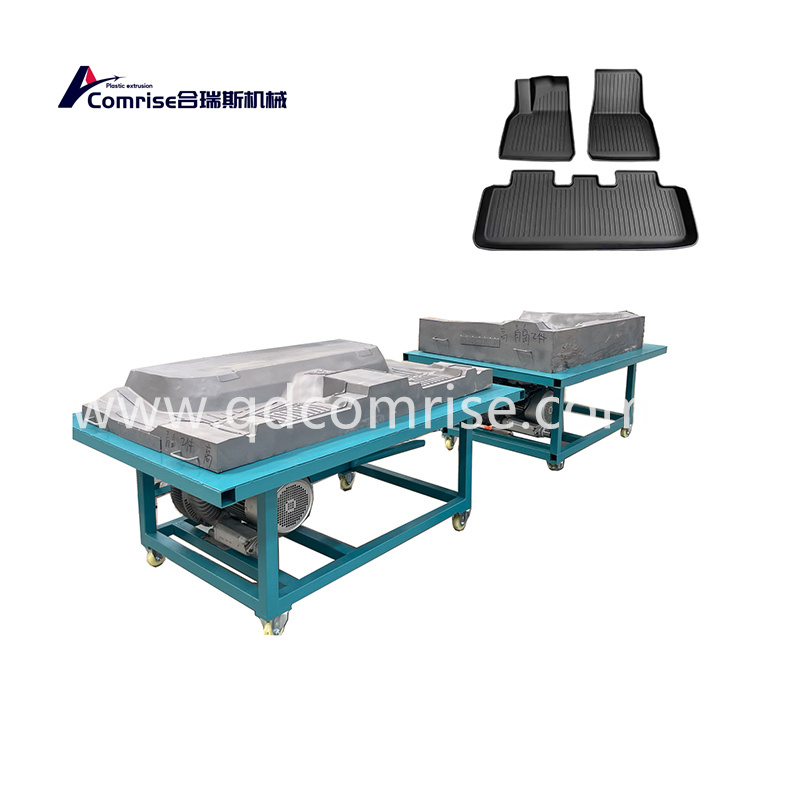

14. TPE Extruder for Car Mat--------Car Mould

Front and back car mat
